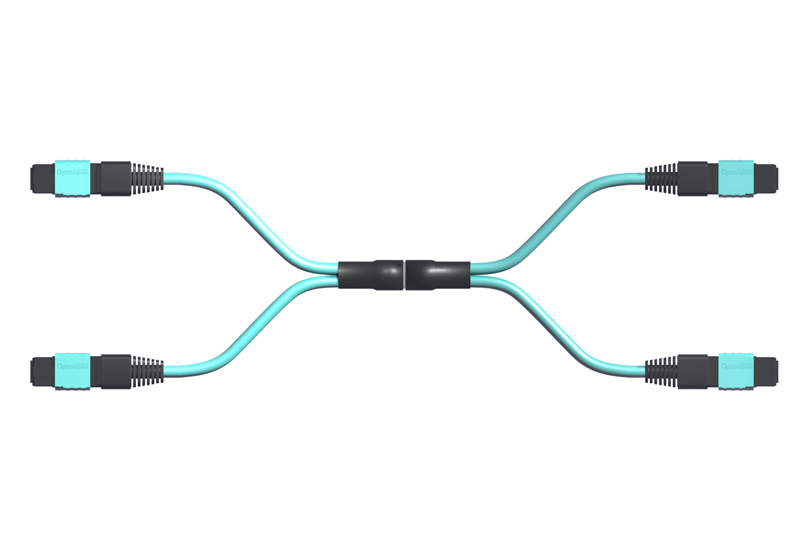

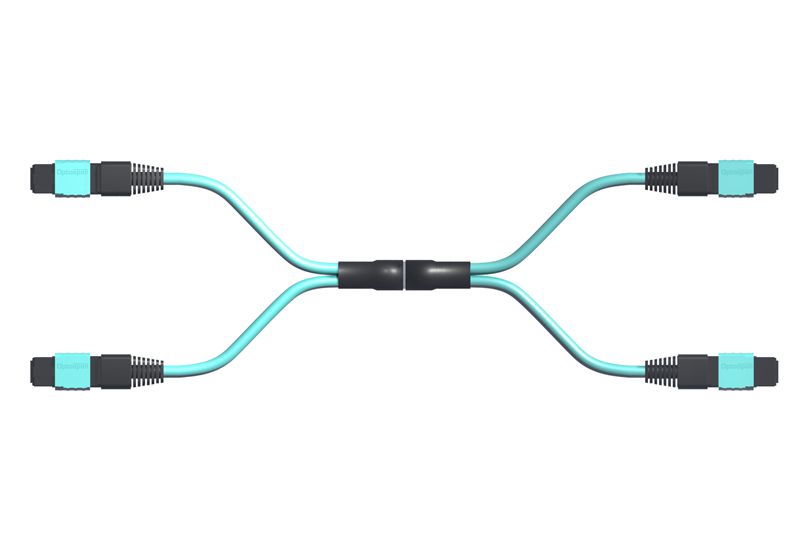

Multimode Plenum MPO Cable, 24 Strand, 125 Meter

Plenum MPO Cable w/FiberShield MPO to MPO 125 Meter / 400ft 24 Strand 40G/100G Multimode

125 Meter (Approx. 400ft) Multimode (OM3) 50/125 micron 24 Strand (12x2) Plenum MPO Cable w/FiberShield with MPO(Female)-MPO(Female) connectors. OM3 (Aqua) for 40G/100G fiber optic networks Type: For 40G/100G Networks - MPO Polarity Method A (Straight-through) - Key-up to Key-down (Polarity B or C optional), MPO to MPO. Breakout Section Length - 24in.

OptoSpan's 24 fiber MPO cables feature our new and exclusive FiberShield design. The FiberShield structure employs three times (3x) the amount of the PVC jacket and DuPont Kevlar to protect the multitude of delicate optical fibers located inside the cables. This ruggedized cable structure results in a flexible yet robust 4.5mm MPO cable that is 5x stronger than the standard 3.0mm cable.

Manufactured using OptoSpan Premium OM3 fiber, standard jacket Plenum MPO Cable w/FiberShield is designed for light to medium duty indoor applications such as data-center racks and desktop/network connections. Optional MTP Elite (US Conec) low loss connectors available. PFPF-JM324NXPCD is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty. Images are for illustrative purposes only.

OptoSpan PFPF-JM324NXPCD | Key Specifications

• FiberShield design - 5x Stronger
• MPO(Female)-MPO(Female) Connectors
• 50/125µm Aqua OM3 Cable
• 10 Year Warranty
• Plenum MPO Cable w/FiberShield
• Complete Test Report
• Serialized for Quality Tracking
• Complies with TIA-604-10 and IEC 61754-20
• Custom Configurations Available
