PRIZM® LightTurn® – MTP (MPO) Cable Assemblies
Rapidly increasing bandwidth requirements in all areas of communication and computing place ever-increasing strain on networking I/O equipment. Edge-mount copper or fiber interfaces are reaching their limits. To meet these demands, embedded parallel optics using the PRIZM® LightTurn® connectors have emerged as the preferred solution.
OptoSpan’s PRIZM® LightTurn® to MTP (MPO) fiber assemblies feature the PRIZM LightTurn connector from US Conec on one end and a 12-, 24-, or 48-fiber MTP connector on the other. These cables are also available as PRIZM LightTurn to PRIZM LightTurn assemblies with a PRIZM LightTurn connector on both ends.
BENEFITS OF PRIZM® LIGHTTURN® ASSEMBLIES:
The PRIZM® LightTurn® connector overcomes the distance and bandwidth limits associated with PCB copper strip lines. It was intended to be a removable miniature connector. When integrated with US Conec's MTP® brand MPO type connector, the PRIZM LightTurn solution significantly increases card edge port density when compared to SFP transceivers, standard array transceivers, or parallel active optical cables (AOC). As a result, this approach is primarily used in parallel optic modules for MPO-based pluggable transceivers, Active Optical Cables, and on-board optical engines for printed circuit board (PCB) and high-performance computing (HPC) applications. By aligning the PRIZM fiber assembly and POD, it is possible to significantly increase optical T/R module density on circuit boards, improve fiber routing by connecting directly to the card edge, and optimize airflow and port density in preparation for migration to next-generation high-speed, high-density networks.
All OptoSpan PRIZM® LightTurn® Assemblies are Cable assemblies are made to Telcordia GR-1435-CORE requirements.
AVAILABLE CONFIGURATIONS
PRIZM® LightTurn® - MTP Cables
- 12 fiber MTP to 1x PRIZM LightTurn connector OM4 bare ribbon fiber cable.
- 24 fiber MTP to 2x PRIZM LightTurn connectors OM4 bare ribbon fiber cable.

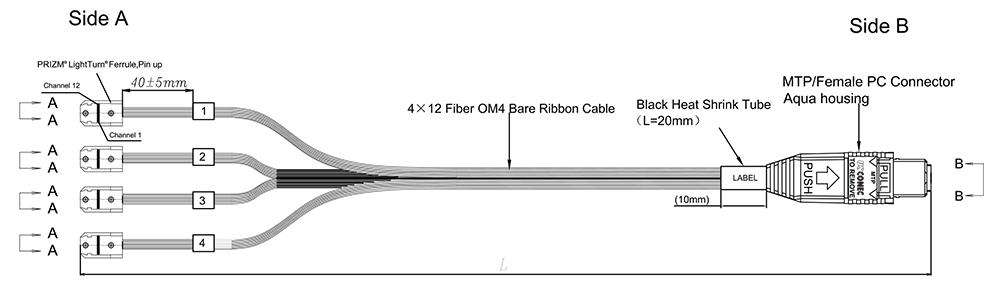

- 48 fiber MTP to 4x PRIZM LightTurn connectors OM4 bare ribbon fiber cable.
PRIZM® LightTurn® - PRIZM® LightTurn® Cables

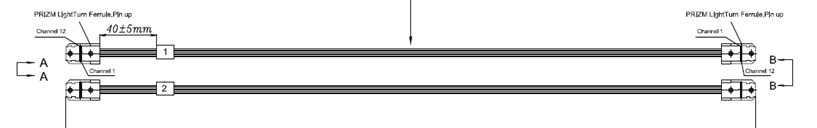

- 12 fiber 1x PRIZM LightTurn to 1x PRIZM LightTurn connector OM4 bare ribbon fiber cable.
Other PRIZM® LightTurn® connector cable combinations
- Round jacket (1.8mm): MTP to PRIZM® LightTurn® OM4 round jacket fiber cable.
- Prizm MT ferrule.
- MT Ferrule: PRIZM LightTurn to MT Ferrule OM4 fiber cable.
- MTP Elite Connector: PRIZM LightTurn to MTP Elite OM4 ribbon cable.
- LC connector: PRIZM LightTurn to LC OM4 round fiber cable.
In addition to the above available configurations, OptoSpan offers Custom PRIZM® LightTurn® Cables that are designed specifically for your application.
SPECIFICATIONS
| PRIZM® LIGHTTURN® SPECIFICATIONS | |
|---|---|
| Connector Type | Bare Ribbon Housing, 1.8mm Jacketed Housing |
| Cable Type | Bare Ribbon, Round Jacket |
| Fiber Count | 12 / 24 / 48 |
| Fiber Type | Multimode OM4 |
| Insertion Loss | 2.0dB Typical |
| Return Loss | >20dB |
| Operating Temperature | -40 C to +80 C |
| MTP CONNECTOR SPECIFICATIONS | |
|---|---|
| MULTIMODE MTP OPTICAL SPECIFICATIONS | |
| MTP | |
| Insertion Loss | 0.20 dB Typical (All Fibers) |
| 0.60 dB Maximum (Single Fiber) | |
| Optical Return Loss | >20db |
| SINGLE-MODE MTP OPTICAL SPECIFICATIONS | |
| MTP | |
| Insertion Loss | 0.25 dB Typical (All Fibers) |
| 0.75 dB Maximum (Single Fiber) | |
| Optical Return Loss | 60dB (8' Angle Polish) |
| PHYSICAL MTP SPECIFICATIONS | |
| MULTIMODE | |
| Operating Temperature | -40 C to +80 C |
| Durability | 1000 mating cycles < 0.2 dB change |
FEATURES & BENEFITS
| FEATURES & BENEFITS |
|---|
| • Improved optical density on PCBs |
| • Optimize air‑flow and fiber routing |
| • Improved fiber management compared to SFP and parallel optics |
| • Multiple re-matings to the POD modules |
| • Customized assembly configurations provide design flexibility/td> |
| • Manufactured for excellent optical performance |
| APPLICATIONS |
|---|
| • Data Centers (Routers, Switches, Storage) |
| • High Speed Computing Applications |
| • Fiber Count |
| • High Performance Test Equipment |
| • IC Testing |
Quality and Engineering Excellence
By utilizing our proprietary manufacturing process developed over 15 years of experience, we are able to produce higher performance products using the same components, hence lowering the cost to our clients. OptoSpan cables are made in a Class 10,000 (ISO14644-1, ISO7) clean room facility, which eliminates the potential of end face contamination.
Quality Management Systems
- ISO 9001: 2008
- TL9000 (Ver. 5)
Standards Compliance
- Telcordia GR-326 Core
- TIA-604-18: FOCIS 18
- IEC 61754-7-3:2019
OptoSpan fiber optic cables are RoHS compliant.
