144 Port MTP Patch Panel 1U LC-MTP Multimode OM4
Online-Only Discounted Price
$2,187.25
PART
UPL4-LQAVZZ-1AF

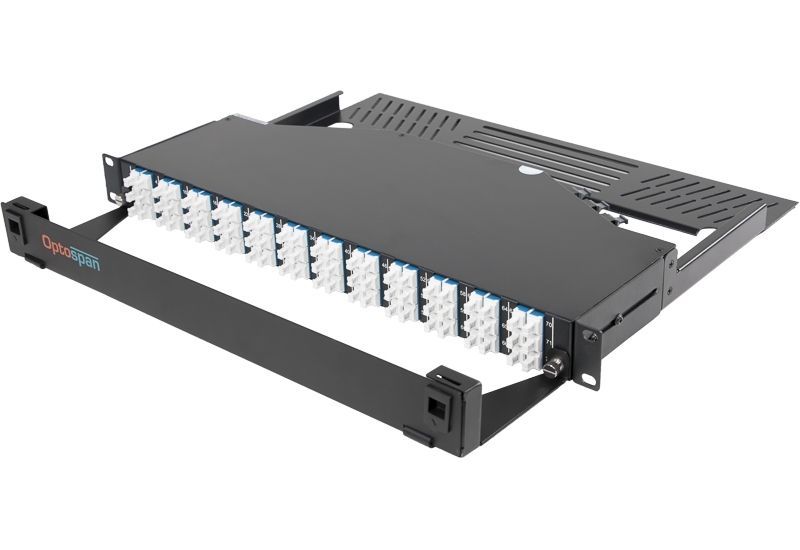

144 Port MTP Patch Panel 1U LC-MTP Multimode OM4
OptoSpan 1U MPO/MTP Patch Panel for quick deployment. This ready-to-install Multimode (OM4) MPO/MTP Patch Panel offers 144 LC ports (36 Quad LC) front and 12 Low Loss MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity A and designed for implementations in 40G/100G networks.
All OptoSpan Matrix Ultra Density Fiber Optic Patch Panels include:
- Front Cable Management Tray with Writable Matrix Label.
- Rear Cable Management Tray.
- Screws & Cage Nuts for Standard 19" Racks.
Key Features and Benefits:
- 144 LC Fiber Ports in 1RU with Flat Front
- 12 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
- Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
- Compact Design with Panel depth of less than 11"
- Premium Front & Rear Wire Management Trays Included
To request more information or quantity pricing for the OptoSpan 144 Port Compact MTP Patch Panel 1U LC-Low Loss (UPL4-LQAVZZ-1AF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 144 Fiber |
Type | Patch Panel |
Mode | OM4 Multimode |
Height | 1U |
Series | Rack Mount - Ultra Density (UD) |
PART | UPL4-LQAVZZ-1AF |
