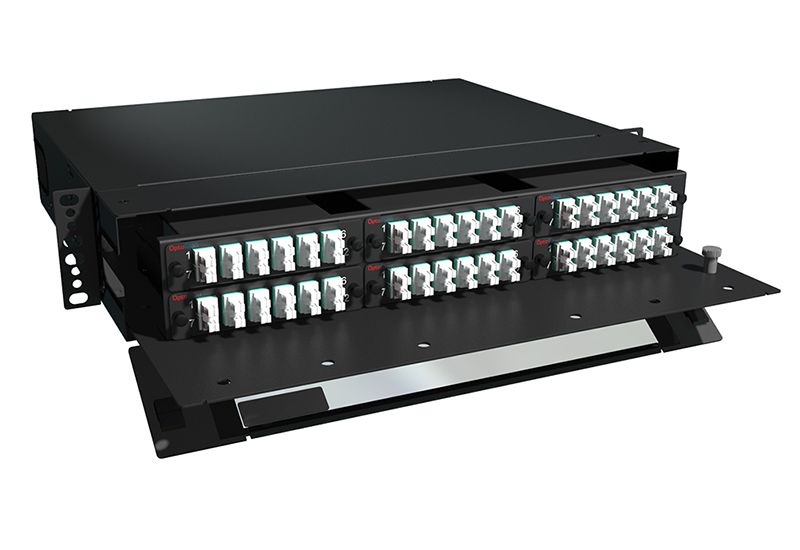

2U LGX Fiber Patch Panel 144 Port LC-MTP Multimode

2U LGX Fiber Patch Panel 144 Port LC-MTP Multimode

OptoSpan 2U LGX Fiber Patch Panel. This 16 Gauge Steel (Black) fiber patch panel is loaded with Qty. 6 24 fiber Multimode (OM3/OM4) LGX fiber cassettes with a total of 144 LC (72 Duplex LC) fiber ports in front and 12 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity Method A and designed for implementations in 10G/40G/100G networks, this fiber patch panel is designed for low insertion loss of .15dB. Expandable to 144 LC ports.

Key Features and Benefits:

• 144 LC Ports in 2U
• 12 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
• Available with up to 288 LC Fiber Ports in 4U
• Splicing Kit Available (Optional)
• LC Pigtails, splice trays and Splice Sleeves Available

To request more information or quantity pricing for the OptoSpan 144 Port Fiber Patch Panel 2U LGX Modular LC-Low (HPQ3-LDCVZZ-2AF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
