SteelFlex Fiber Cables w/ OptoLock

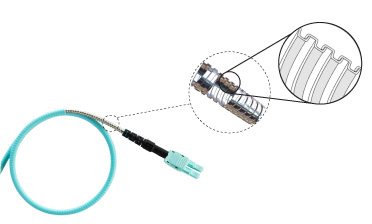

Exclusive OptoLock Mechanism comprised of a steel metal tube locked into place by overlapping links. This results in an unmatched, rugged, yet light weight cable, providing maximum flexibility.
Specifications
| Single-Mode | Multimode | ||
|---|---|---|---|
| • Maximum Attenuation: | 0.4dB/km@1310nm | 3.5dB/km@850nm | |
| 0.3dB/km@1550nm | 1.5dB/km@1300nm |
• Connector Performance:
| Connector Type: | PC | UPC | APC | PC | |
|---|---|---|---|---|---|
| Insertion Loss (dB) | ≤ 0.3 | ≤ 0.2 | ≤ 0.3 | ≤ 0.3 | |
| Return Loss (dB) | ≥45 | ≥50 | ≥65 | --- |
| • Operating Temperature: | -40°C~+85°C |
| • Outside Diameter: | 4.8mm, 3.4mm Fan-Out Section |
| • Net Weight: | ~32kg/km |
| • Bending Strength: | 15 kgf |
| • Mechanical Shock: | 5 Nm |
| • Lateral Pressure: | 500 kgf |
For more information, view our SteelFlex Armored Datasheet. Also view our SteelFlex Armored Fiber Cables available in Fiber Patch Cables and MPO Cables.
