24 LC to 2 MTP 10G/40G Single mode Fiber Cassette - Method A
Online-Only Discounted Price
$477.00
PART
HCQ9-LDZVZD-XAF
24 LC to 2 MTP 10G/40G Single mode Fiber Cassette - Method A

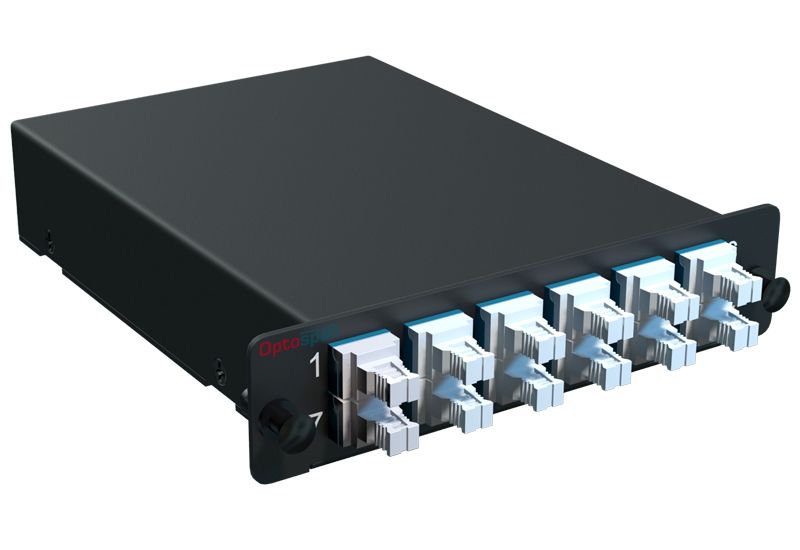

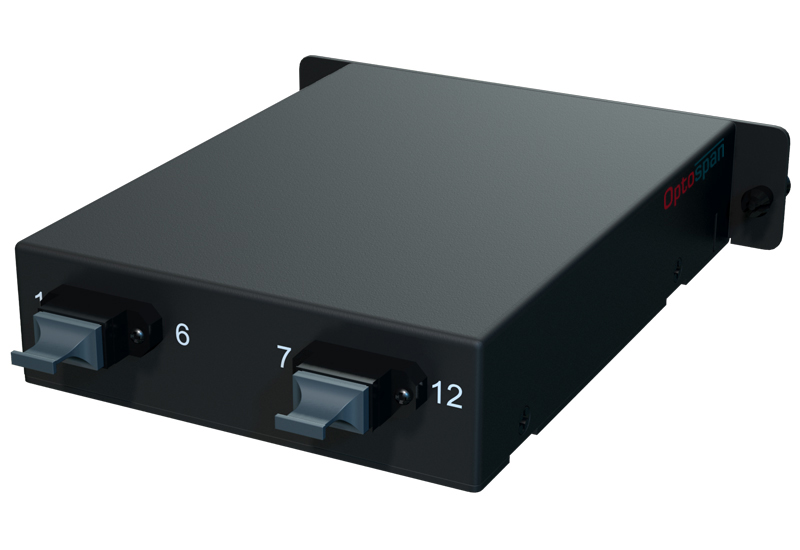

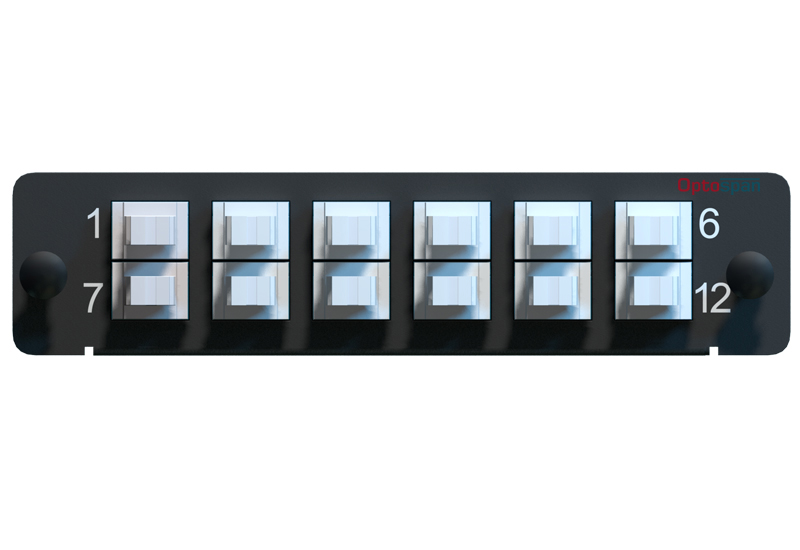

OptoSpan Matrix High Density (Matrix-HD) Series Adapter Cassette. This 16 Gauge Steel LGX type adapter cassette offers 24 Single-mode LC ports (12 Duplex LC) in the front, and 2 Low Loss MTP Elite (12 Fiber Connector) for connection to MTP/MPO backbone trunk. Compatible with Matrix-HD Series fiber optic patch panels.
Compare To:
- CommScope Part# 360DM-24LC-SM
- Corning Part# ECM-UM12-18-89G
- Leviton Part# FME2XHD-A024CKLEA
- Panduit Part# FC9-24-10Y
Key Features and Benefits:
- Compatible with Matrix-HD Series Fiber Enclosures
- Up-to 3 Fiber Cassettes per 1u Fiber Patch Panel
- Flexibility to Mix Adaptor Panels with Cassettes in Patch Panel
- Available with LC, LC/APC, SC, ST, FC and MTP/MPO Adapters
- Easily Accessible MTP/MPO Ports for Connection to Trunk Cable
To request more information or quantity pricing for the OptoSpan Single-mode OS2 LC LGX Adapter Cassette (HCQ9-LDZVZD-XAF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Type | Adapter Cassette |
---|---|
Compatibility | OptoSpan |
Mode | OS2 Single-mode |
Fiber Count | 24 Fiber |
Series | Rack Mount - High Density (HD) |
PART | HCQ9-LDZVZD-XAF |
