NP-144 Outdoor Waterproof Fiber Enclosure - Harsh Environment | NEMA-4X Rated

NP-144 Outdoor Waterproof Fiber Enclosure - Harsh Environment | NEMA-4X Rated

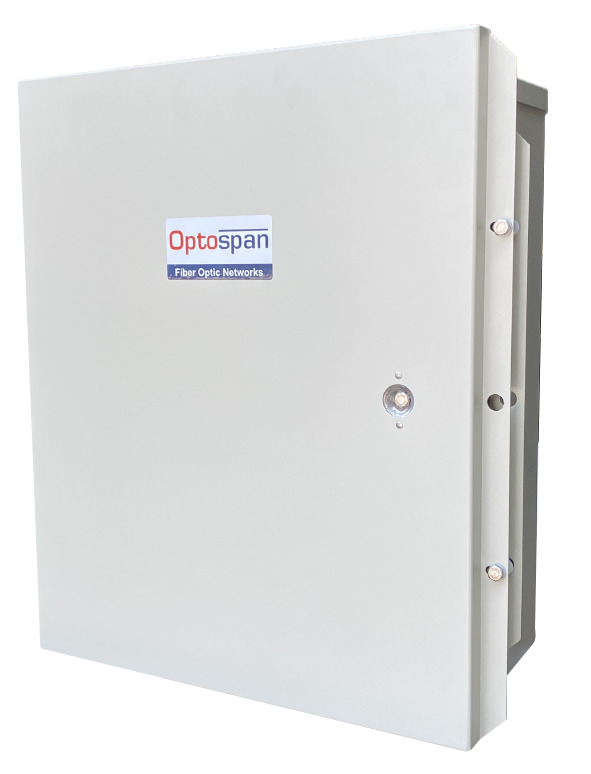

OptoSpan's Select NP-144 Outdoor Waterproof Termination Enclosures provide a secure housing for fiber optic connectors and cables and are engineered to withstand exposure to severe environmental conditions, making them a crucial component for a variety of industrial and telecommunications applications.

This NEMA 4X patch panel has two sections for incoming and outgoing fiber optic cables. It can be pre-configured with up to twelve (12) MTP-LC cassettes or up-to 144 pass-through LC, SC, ST or FC adapter ports.

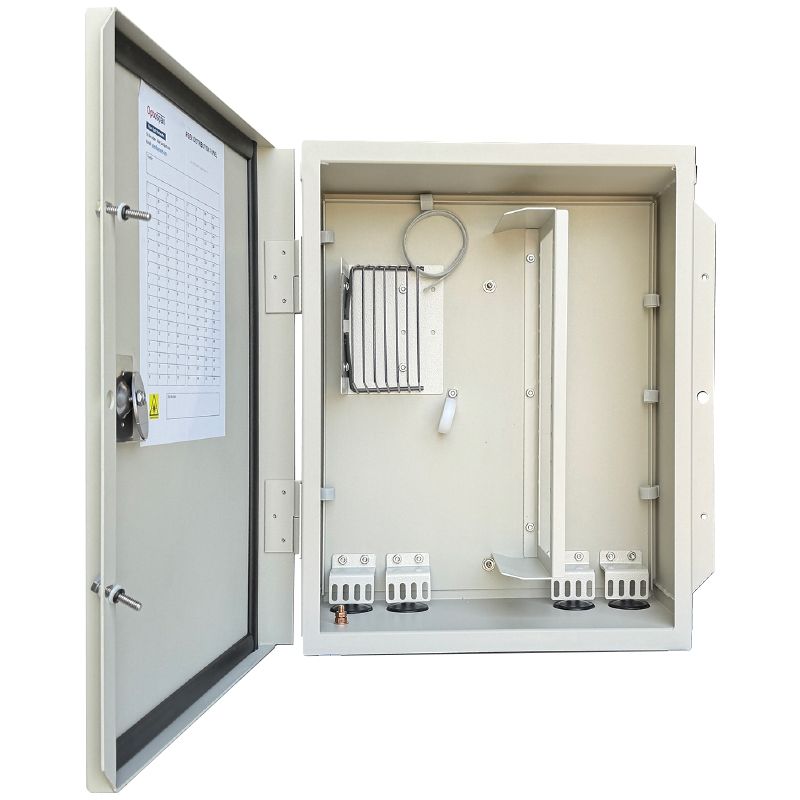

Lockable gasketed doors and stainless steel hardware are features of these enclosures. This waterproof patch panel includes cable management accessories such as cable ties, rack mounting screws, and a grid label sticker to support and organize cables, thereby reducing the risk of damage or tangling.

Optional outdoor fiber optic cables with cable glands, and a pole mounting kit are available for this panel.

Key Features and Benefits:

• Dimensions: 22”L x 17.1”W x 7.1”D (20lbs)
• Compatible with MTP-LC Cassettes & Automatic Dust Protection LC Adapter Panels
• Up-to 288 Fibers. (12) Slots for Adapter Panels or MTP-LC Cassettes
• Cable Management - Cable Ties, Cable Clips, and Grid Label Included
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan NP-144 Outdoor Waterproof Fiber Enclosure (NEUX-X00X00-4XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
