12 SC to 1 MTP 10G/40G Multimode Fiber Cassette - Method A
Online-Only Discounted Price
$172.25
PART
HCQ3-SDHVZS-XAF
12 SC to 1 MTP 10G/40G Multimode Fiber Cassette - Method A

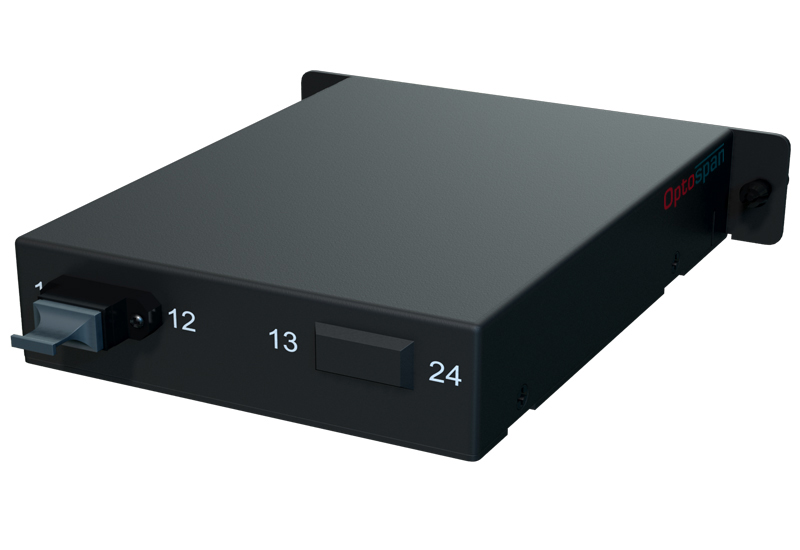

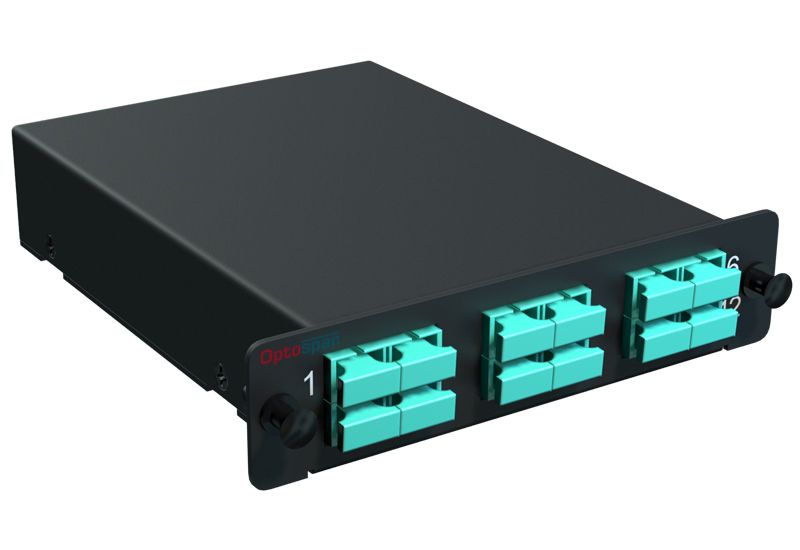

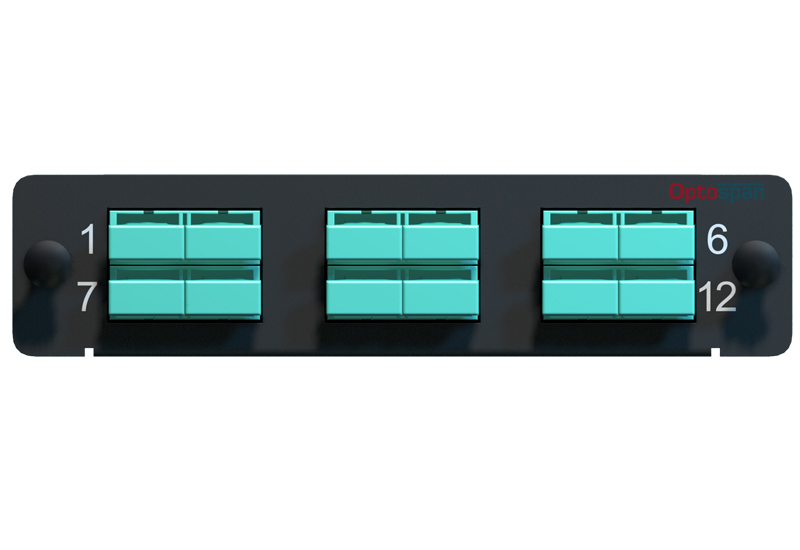

OptoSpan Matrix High Density (Matrix-HD) Series Adapter Cassette. This 16 Gauge Steel LGX type adapter cassette offers 12 Multimode (OM3/OM4) SC ports (6 Duplex SC) in the front, and 1 Low Loss MTP Elite (12 Fiber Connector) for connection to MTP/MPO backbone trunk. Compatible with Matrix-HD Series fiber optic patch panels.
Compare To:
- CommScope Part# 360DM-12SC-LS
- Corning Part# CCH-UM12-57-70Q
- Leviton Part# FM-F012BAC0A
- Panduit Part# FC2ZN-12-03AS
Key Features and Benefits:
- Compatible with Matrix-HD Series Fiber Enclosures
- Up-to 3 Fiber Cassettes per 1u Fiber Patch Panel
- Flexibility to Mix Adaptor Panels with Cassettes in Patch Panel
- Available with LC, LC/APC, SC, ST, FC and MTP/MPO Adapters
- Easily Accessible MTP/MPO Ports for Connection to Trunk Cable
To request more information or quantity pricing for the OptoSpan Multimode OM3/OM4 SC LGX Adapter Cassette (HCQ3-SDHVZS-XAF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Type | Adapter Cassette |
---|---|
Compatibility | OptoSpan |
Mode | OM3/OM4 Multimode |
Fiber Count | 12 Fiber |
Series | Rack Mount - High Density (HD) |
PART | HCQ3-SDHVZS-XAF |
