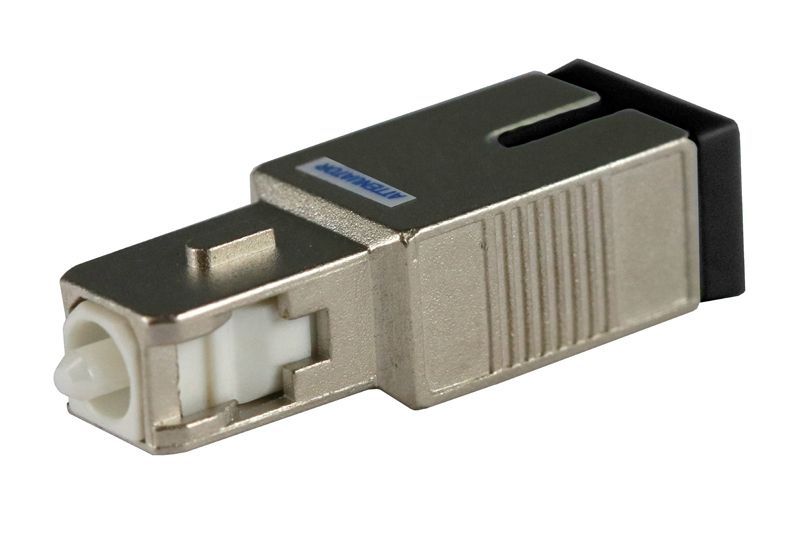

Fiber Optic Attenuator SC 5dB Single-mode

Fiber Optic Attenuator SC 5dB Single-mode

A Fixed In-line fiber optic SC 5dB attenuator (Mfr. Japan) that can be quickly installed in your single-mode (1310/1550nm) optical link to reduce optical power. This Simplex SC/Male to SC/Female premium grade attenuator (Return Loss: UPC ≤ -50dB, APC ≤ -60dB) can accommodate up to 200mw high power and offer very low attenuation tolerance of less than 0.5dB (1-10dB: ≤ .5dB, 11-25dB: 5% x Attenuation).

Key Features and Benefits:

• Fixed In-line Attenuator for Single-mode fiber
• Polarization Dependent Loss ≤0.1dB
• 5dB Attenuation (Accuracy +/-0.5)
• Return Loss: ≤ -50dB (UPC), ≤ -60dB (APC)
• High-precision doping technology & Premium Ceramic Ferrule

To request more information or quantity pricing for the OptoSpan SC 5dB Attenuator (OTSS-SMSSFS-X5L), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
