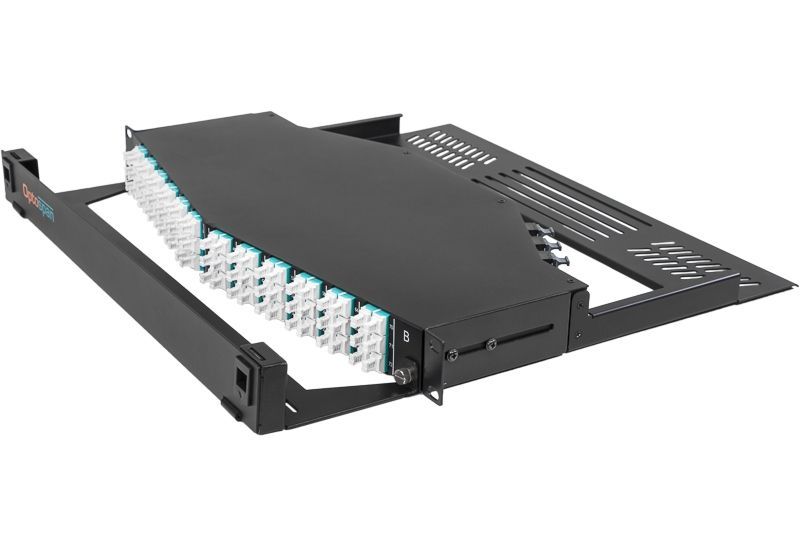

96 Port Angled MTP Patch Panel 1U LC-MTP Multimode OM4
Online-Only Discounted Price
$1,663.50
PART
UPL4-LQWVZT-1AA
96 Port Angled MTP Patch Panel 1U LC-MTP Multimode OM4
OptoSpan 1U MPO/MTP Patch Panel for quick deployment. This ready-to-install Multimode (OM4) Angled MPO/MTP Patch Panel offers 96 LC ports (24 Quad LC) front and 8 Low Loss MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity A and designed for implementations in 40G/100G networks.
All OptoSpan Matrix Ultra Density Fiber Optic Patch Panels include:
- Front Cable Management Tray with Writable Matrix Label.
- Rear Cable Management Tray.
- Screws & Cage Nuts for Standard 19" Racks.
Key Features and Benefits:
- 96 LC Fiber Ports in 1RU with Angled Front
- 8 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
- Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
- Compact Design with Panel depth of less than 11"
- Premium Front & Rear Wire Management Trays Included
To request more information or quantity pricing for the OptoSpan 96 Port Angled MTP Patch Panel 1U LC-Low Loss MTP (UPL4-LQWVZT-1AA), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 96 Fiber |
Type | Patch Panel |
Mode | OM4 Multimode |
Height | 1U |
Series | Rack Mount - Ultra Density (UD) |
PART | UPL4-LQWVZT-1AA |
