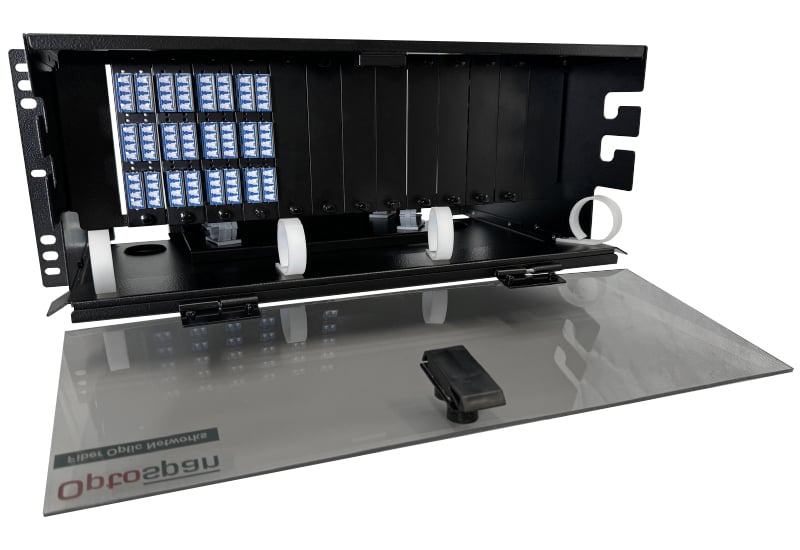

96 Fiber MTP-LC Cassette 24F Multimode 4U Rack Mount Distribution Panel

96 Fiber MTP-LC Cassette 24F Multimode 4U Rack Mount Distribution Panel

OptoSpan RM-144 4U Rack Mount Distribution Panel provides a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.

This 16 Gauge CRS Steel (Black) Rack Mount Distribution Panel includes Qty. 4 24-fiber Multimode (OM4) fiber cassettes for a total of 96 LC (48 Duplex LC) fiber ports in front and 4 MTP Elite (24 Fiber Connector) Male/Pinned rear ports. This Rack Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.

This rack mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 7" H x 17" W x 12”D (16lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes RM-144 Enclosure & (4) 24F MTP-LC Cassettes (4 - 24F MTP Ports)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 96 Fiber MTP-LC 24F Multimode 4U Rack Mount Panel (SPQ4-LDBVWQ-4XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
