96 Fiber LC Adapter Multimode 2U Rack Mount Splice/Termination Panel

96 Fiber LC Adapter Multimode 2U Rack Mount Splice/Termination Panel

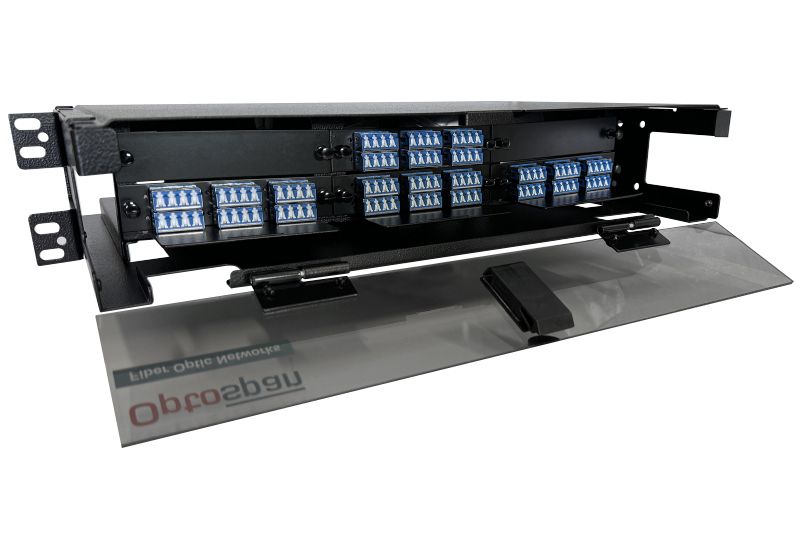

OptoSpan RM-72 2U Rack Mount Splice/Termination Panel provides a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.

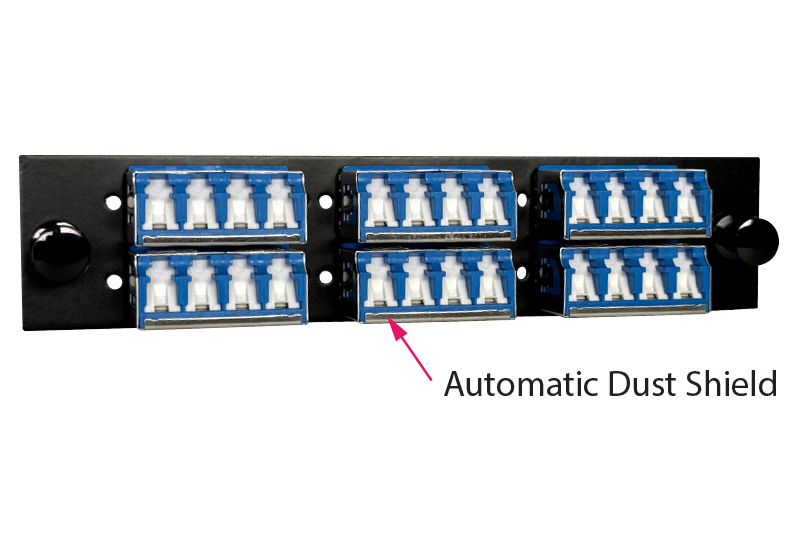

This RM-72 Rack Mount Patch Panel feature OptoSpan's EXCLUSIVE LC ADAPTER PANELS WITH IP5X COMPLIANT AUTOMATIC DUST SHIELD (no dust cap required on front side). This rattle-free LC adapter panel uses advanced LC adapters with a unibody design to prevent laser eye exposure while also providing the best dust and contaminant protection. The dust cover opens automatically when the LC connector is inserted and closes when it is removed. No more network outages due to dirty LC connectors!

This 16 Gauge CRS Steel (Black) Rack Mount Splice/Termination Panel includes Qty. 4 24-fiber Multimode (OM4) fiber adapter panels for a total of 96 LC (48 Duplex LC) ports. This high-performance Rack Mount Splice/Termination Panel is ideal for use in data center 10G/40G/100G networks.

Never again worry about a lost or misplaced dust cap! This RM-72 Rack Mount Splice/Termination Panel features OptoSpan's industry-leading Select Series LC Adapter Panels which have a hands-free fully automatic shutter mechanism for dust protection. There's no need to manually apply dust caps to the LC ports on this panel. The white translucent shutters on these IP5X rated dust protection adapters provide laser protection as well.

This rack mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 3.5”H x 17”W x 12”D (14lbs)
• Automatic IP5X Rated Dust Protection – No Dust Caps Required
• Includes Qty. 4 - 24F Aluminum Splice Trays with Splice Chips
• Includes RM-72 Enclosure & (4) 24F LC Adapter Panels & Splice Trays
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 96 Fiber LC Multimode 2U Rack Mount Panel (SPP4-LDBLDB-2ST), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
