2U LGX Fiber Patch Panel 72 Port LC-MTP Multimode
Online-Only Discounted Price
$1,433.50
PART
HPQ3-LDAVZH-2AF

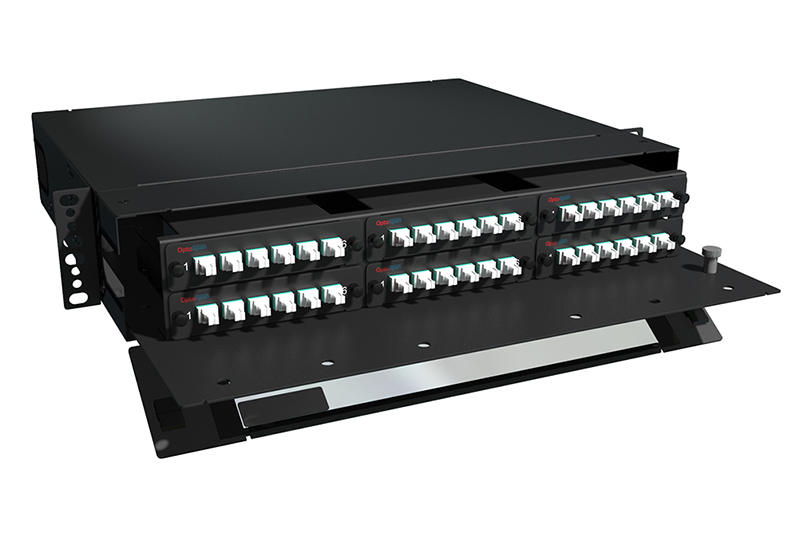

2U LGX Fiber Patch Panel 72 Port LC-MTP Multimode

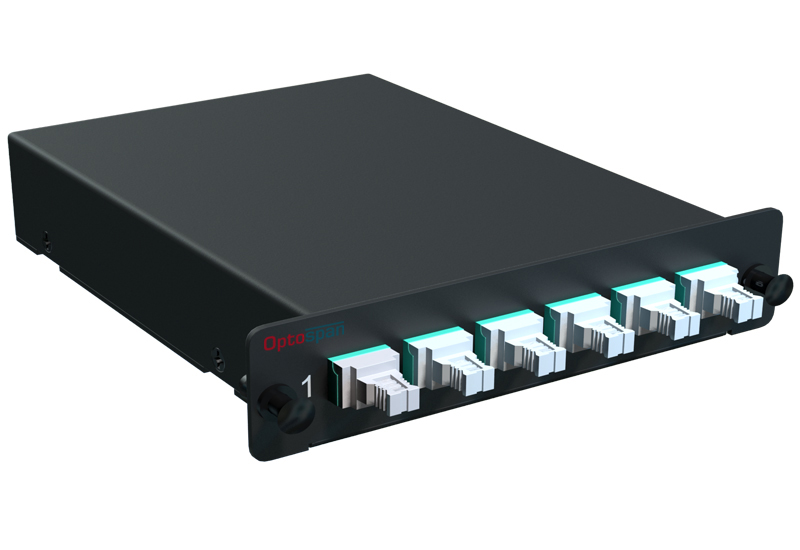

OptoSpan 2U LGX Fiber Patch Panel. This 16 Gauge Steel (Black) fiber patch panel is loaded with Qty. 6 12 fiber Multimode (OM3/OM4) LGX fiber cassettes with a total of 72 LC (36 Duplex LC) fiber ports in front and 6 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity Method A and designed for implementations in 10G/40G/100G networks, this fiber patch panel is designed for low insertion loss of .15dB. Expandable to 144 LC ports.
Key Features and Benefits:
- 72 LC Ports in 2U
- 6 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
- Available with up to 288 LC Fiber Ports in 4U
- Splicing Kit Available (Optional)
- LC Pigtails, splice trays and Splice Sleeves Available
To request more information or quantity pricing for the OptoSpan 72 Port Fiber Patch Panel 2U LGX Modular LC-Low (HPQ3-LDAVZH-2AF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 72 Fiber |
Type | Patch Panel |
Mode | OM3/OM4 Multimode |
Height | 2U |
Series | Rack Mount - High Density (HD) |
PART | HPQ3-LDAVZH-2AF |
