72 Fiber MTP-LC Cassette Single-mode 4U Rack Mount Distribution Panel

72 Fiber MTP-LC Cassette Single-mode 4U Rack Mount Distribution Panel

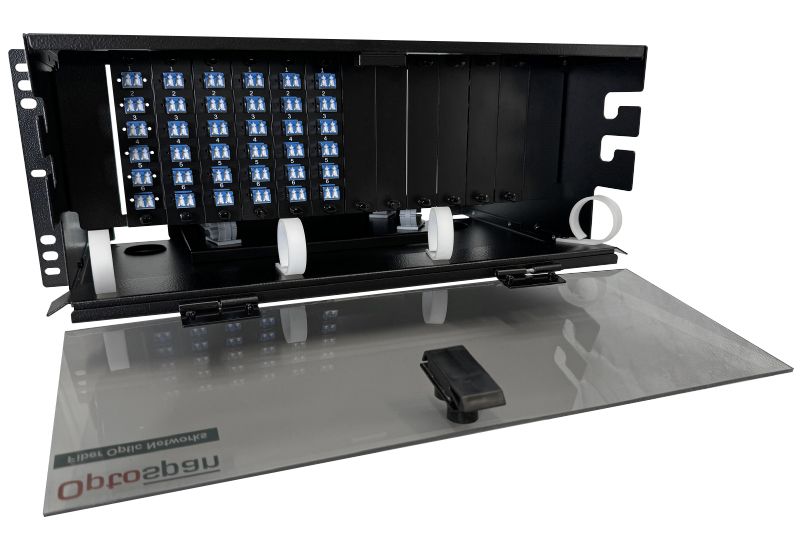

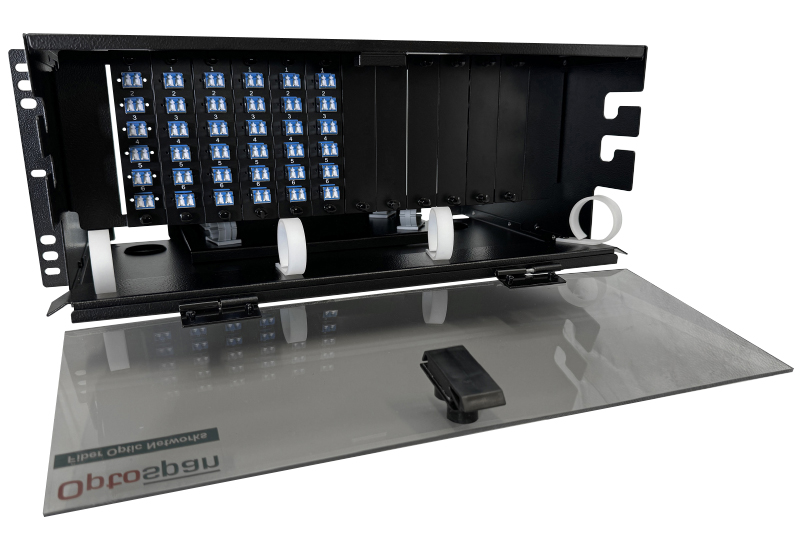

OptoSpan RM-144 4U Rack Mount Distribution Panel provides a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.

This 16 Gauge CRS Steel (Black) Rack Mount Distribution Panel includes Qty. 6 12-fiber Single-mode fiber cassettes for a total of 72 LC (36 Duplex LC) fiber ports in front and 6 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Rack Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.

This rack mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 7" H x 17" W x 12”D (16lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes RM-144 Enclosure & (6) 12F MTP-LC Cassettes (6 - 12F MTP Ports)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 72 Fiber MTP-LC Single-mode 4U Rack Mount Panel (SPQ9-LDAVZH-4XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
