550m PoE Media Converter Gigabit Ethernet to Fiber Multimode

PoE Media Converter Gigabit Ethernet to Fiber Multimode 850nm 550m RJ45-SFP (LC)

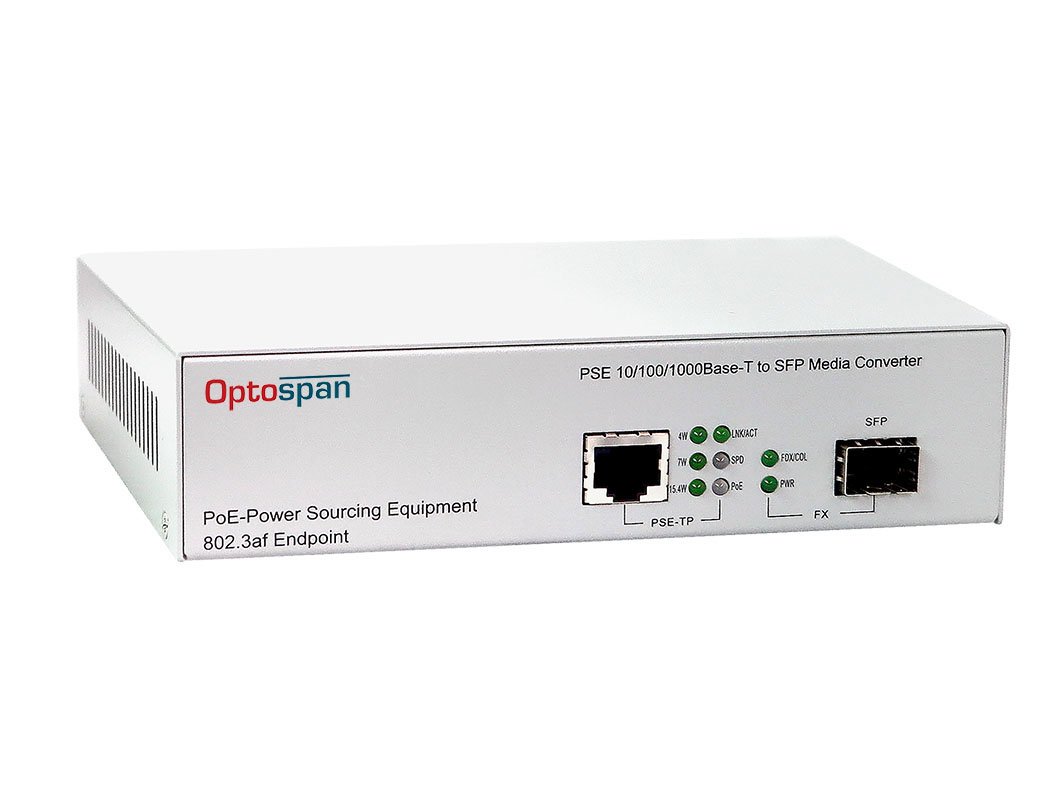

OptoSpan MCM-1PS-M550L85 high-performance RJ45-SFP (LC) multimode Gigabit Ethernet media converter provides a low cost solution for connecting two different network segments via Power Over Ethernet (PoE)/PSE. This 10/100/1000BASE-T TO SFP (850nm) media converter supports Ethernet connections of up to 550m (over multimode fiber) and comes equipped with a powered device (PD) signature for detecting and monitoring power, as well as over-current protection, under-current detection and fault protection input. It also includes link fault pass-through capabilities, monitoring fiber and copper ports to prevent signal or data loss. This media converter complies with the IEE802.3af Power Over Ethernet standard and is ROHS and Trade Agreements Act (TAA) Compliant.

Features:

• IEEE802.3af PoE (Power over Ethernet) PSE compatible
• Supports one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX (SFP) Gigabit Ethernet Fiber port
• PSE MDI power enable/disable
• Supports 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
• Link fault passthrough monitors both copper and fiber receive ports for loss of signal.
• Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link.
• Supports auto mode on the TP port
• DIP switch to set configurations
• Jumbo frame support (Normal Mode: 2KB, Cut-Through Mode: 9KB)

Applications:

• 10/100/1000 Gigabit Ethernet
