48 Port 1U Fiber Optic Patch Panel Single mode MTP-LC
Online-Only Discounted Price

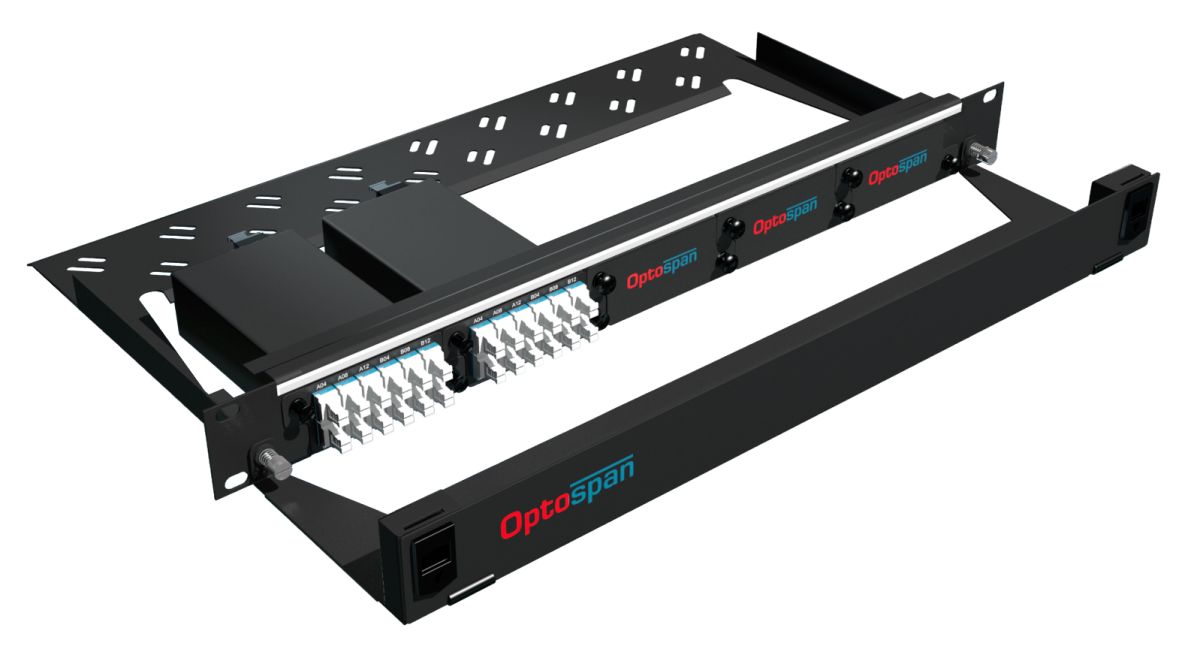

48 Port 1U Fiber Optic Patch Panel Single mode MTP-LC

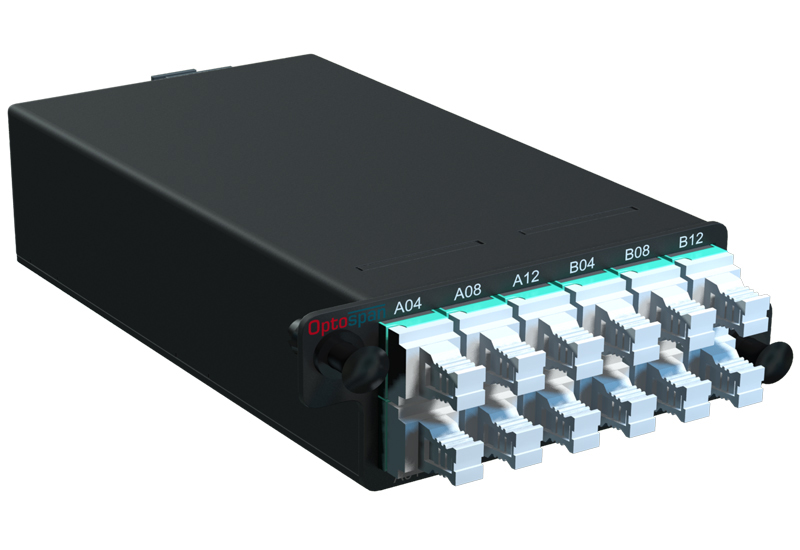

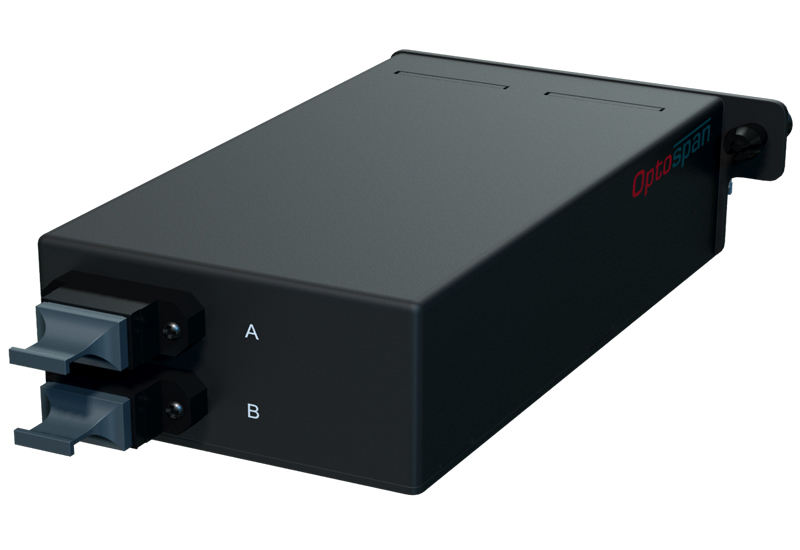

OptoSpan 1U High Density Fiber Optic Patch Panel. This shallow depth (7") compact fiber optic patch panel is loaded with Qty. 2 24 fiber LC-MTP Elite Single-mode Low Loss MTP Cassettes with a total of 48 LC (24 Duplex LC) fiber ports in front and 4 Loss Optimized MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity A and designed for implementations in 40G/100G networks, this fiber optic patch panel is designed for Data Centers, Telecommunication and Enterprise network environment. Expandable to 120 LC fiber adapter ports.
All OptoSpan Matrix Ultra Elite Fiber Optic Patch Panels include:
- Front Cable Management Tray with Writable Matrix Label.
- Rear Cable Management Tray.
- Screws & Cage Nuts for Standard 19" Racks.
Key Features and Benefits:
- 48 LC Fiber Ports (Expandable to 288 LC Fiber Ports in 2 RU)
- 4 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
- Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
- Super Compact Design with Panel depth of less than 7"
- Premium Front & Rear Wire Management Trays Included
To request more information or quantity pricing for the OptoSpan 48 Port High Density Fiber Optic Patch Panel 1U (EPM9-LDWVZQ-1AT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 48 Fiber |
Type | Patch Panel |
Mode | OS2 Single-mode |
Height | 1U |
Series | Rack Mount - Ultra Elite (EP) |
PART | EPM9-LDWVZQ-1AT |
