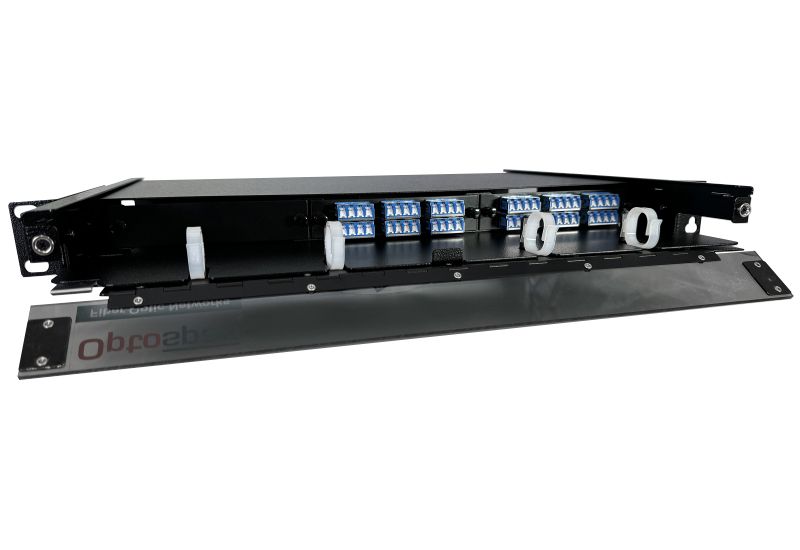

48 Fiber MTP-LC Cassette Single-mode 1U Rack Mount Splice/Termination Panel
Online-Only Discounted Price
48 Fiber MTP-LC Cassette Single-mode 1U Rack Mount Splice/Termination Panel
OptoSpan RM-36 1U Rack Mount Splice/Termination Panel provides a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.
This 16 Gauge CRS Steel (Black) Rack Mount Splice/Termination Panel includes Qty. 2 24-fiber Single-mode fiber cassettes for a total of 48 LC (24 Duplex LC) fiber ports in front and 4 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Rack Mount Splice/Termination Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.
This rack mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.
Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.
Key Features and Benefits:
- Dimensions: 1.75”H x 17”W x 15”D (15lbs)
- Compatible with OptoSpan High Density MTP-LC Cassettes
- Optional Fiber Splicing Version is Available.
- Cable Management - Cable Ties, Cable Clips, and Grid Label Included
- Made in USA - Buy American Act Compliant
To request more information or quantity pricing for the OptoSpan (SPQ9-LDWVZQ-1ST), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Fiber Count | 48 Fiber |
---|---|
Type | Patch Panel |
Mode | OS2 Single-mode |
Height | 1U |
Series | Rack Mount - Select (RM) |
PART | SPQ9-LDWVZQ-1ST |
