1U LGX Fiber Patch Panel 36 Port SC-MTP Single mode
Online-Only Discounted Price
$983.25
PART
HPQ9-SDVVZR-1AF
1U LGX Fiber Patch Panel 36 Port SC-MTP Single mode

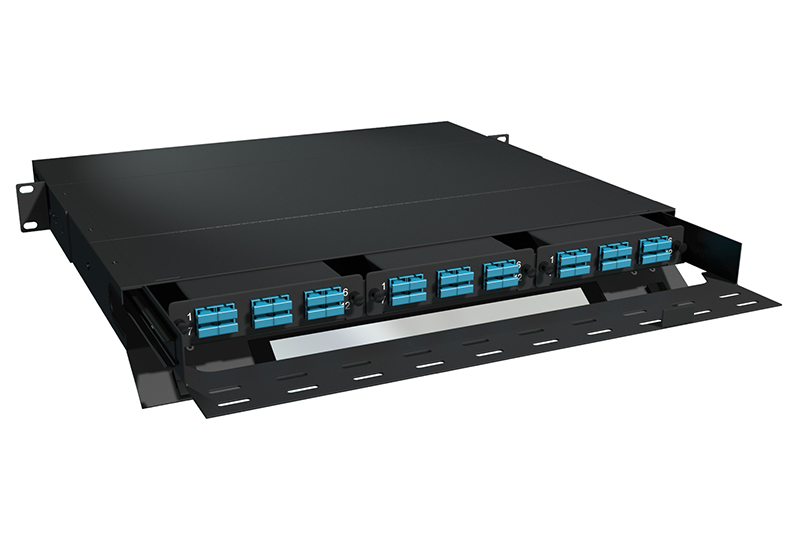

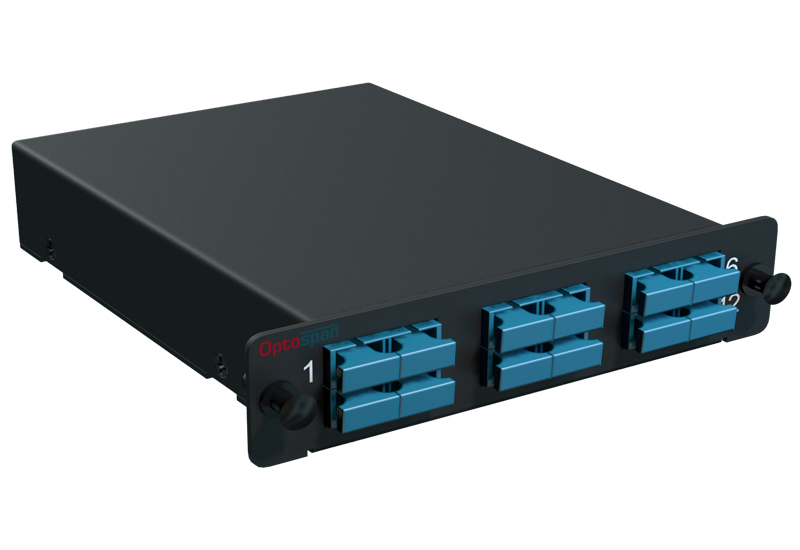

OptoSpan 1U LGX Fiber Patch Panel. This 16 Gauge Steel (Black) fiber patch panel is loaded with Qty. 3 12 fiber Single-mode LGX fiber cassettes with a total of 36 SC (18 Duplex SC) fiber ports in front and 3 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity Method A and designed for implementations in 10G/40G/100G networks, this fiber patch panel is designed for low insertion loss of .15dB. Maximum expandable to 36 SC ports.
Key Features and Benefits:
- 36 SC Ports in 1U
- 3 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
- Available with up to 288 LC Fiber Ports in 4U

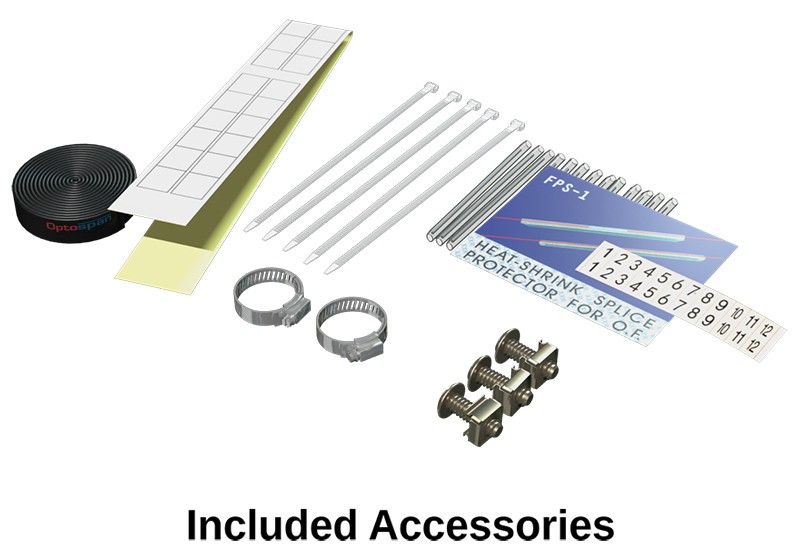

- Splicing Kit Available (Optional)
- LC Pigtails, splice trays and Splice Sleeves Available
To request more information or quantity pricing for the OptoSpan 36 Port Fiber Patch Panel 1U LGX Modular SC-Low (HPQ9-SDVVZR-1AF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 36 Fiber |
Type | Patch Panel |
Mode | OS2 Single-mode |
Height | 1U |
Series | Rack Mount - High Density (HD) |
PART | HPQ9-SDVVZR-1AF |
