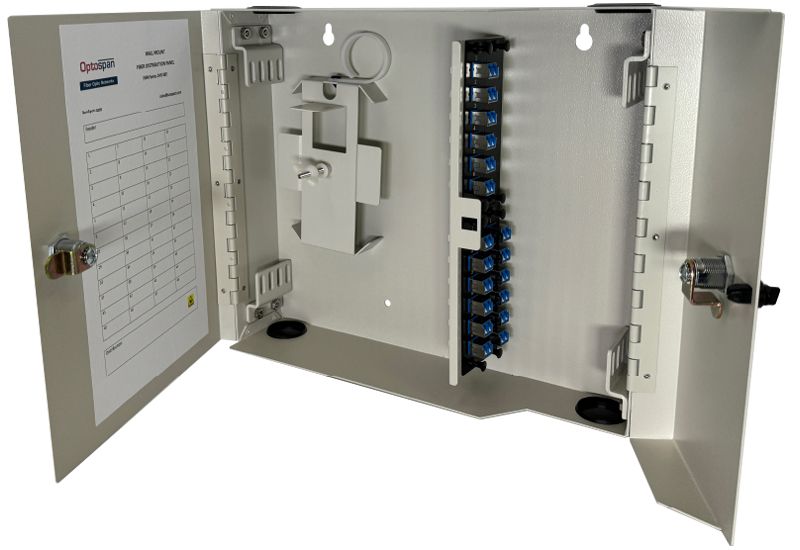

36 Fiber MTP-LC Cassette Multimode WM-48 Wall Mount Distribution Panel
OptoSpan WM-48 Wall Mount Distribution Panel is suitable for a wide range of applications, including data centers, telecommunications rooms, fiber-to-the-home (FTTH) installations, and enterprise networks when rack mounting space is limited.
This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Wall Mount Distribution Panel includes Qty. 3 12-fiber Multimode (OM4) fiber cassettes for a total of 36 LC (18 Duplex LC) fiber ports in front and 3 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Wall Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.
This wall mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.
Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.
Key Features and Benefits:
- Dimensions: 14”\L x 12”W x 3.29”D (12lbs)
- Compatible with OptoSpan High Density MTP-LC Cassettes
- Optional Fiber Splicing Version is Available.
- Includes WM-48 Enclosure & (3) 12F MTP-LC Cassettes (3 - 12F MTP Ports)
- Made in USA - Buy American Act Compliant
To request more information or quantity pricing for the OptoSpan 36 Fiber MTP-LC Multimode WM-48 Wall Mount Panel (WPQ4-LDVVZR-1XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Fiber Count | 36 Fiber |
---|---|
Type | Patch Panel |
Mode | OM4 Multimode |
Height | 1U |
Series | Wall Mount - Select (WM) |
PART | WPQ4-LDVVZR-1XT |
