2km PoE Media Converter Gigabit Ethernet to Fiber Single-mode

PoE Media Converter Gigabit Ethernet to Fiber Single Mode 1310nm 2km RJ45-SFP (LC)

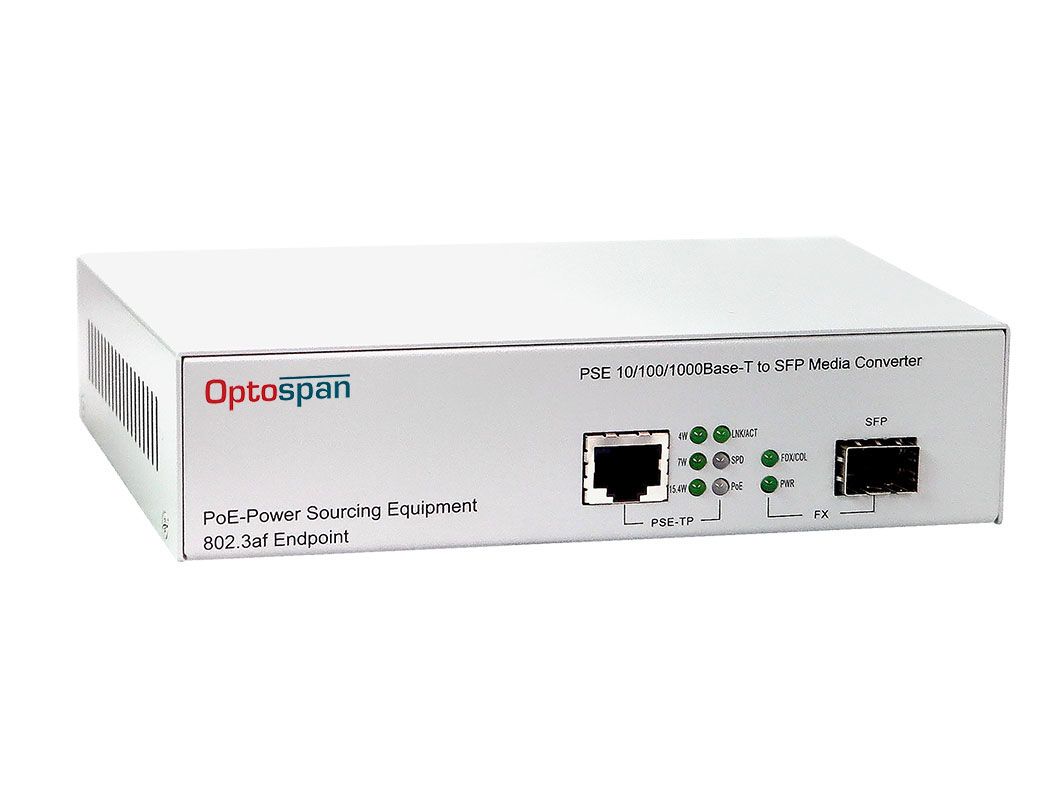

OptoSpan MCS-1PS-K002L31 high-performance RJ45-SFP (LC) single-mode Gigabit Ethernet media converter provides a low cost solution for connecting two different network segments via Power Over Ethernet (PoE)/PSE. This 10/100/1000BASE-T TO SFP (1310nm) media converter supports Ethernet connections of up to 2km (over single-mode fiber) and comes equipped with a powered device (PD) signature for detecting and monitoring power, as well as over-current protection, under-current detection and fault protection input. It also includes link fault pass-through capabilities, monitoring fiber and copper ports to prevent signal or data loss. This media converter complies with the IEE802.3af Power Over Ethernet standard and is ROHS and Trade Agreements Act (TAA) Compliant.

*Also available in Single Fiber bidirectional model.

Features:

• IEEE802.3af PoE (Power over Ethernet) PSE compatible
• Supports one 10/100/1000Base-T Gigabit Ethernet UTP port and one 1000Base-SX / LX (SFP) Gigabit Ethernet Fiber port
• PSE MDI power enable/disable
• Supports 802.3x flow control for full-duplex ports and backpressure for half-duplex ports
• Link fault passthrough monitors both copper and fiber receive ports for loss of signal.
• Far-end fault detection prevents the loss of valuable data from it being sent over an invalid link.
• Supports auto mode on the TP port
• DIP switch to set configurations
• Jumbo frame support (Normal Mode: 2KB, Cut-Through Mode: 9KB)

Applications:

• 10/100/1000 Gigabit Ethernet
