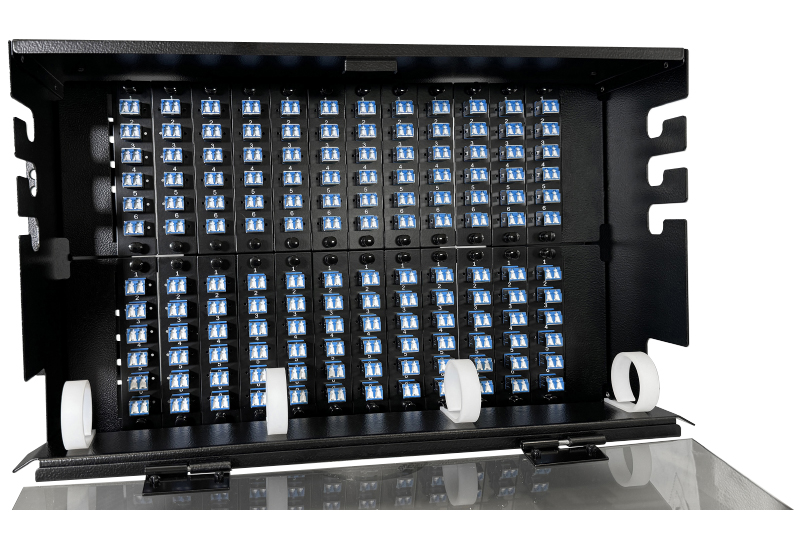

288 Fiber MTP-LC Cassette Single-mode 6U Rack Mount Distribution Panel

288 Fiber MTP-LC Cassette Single-mode 6U Rack Mount Distribution Panel

OptoSpan RM-288 6U Rack Mount Distribution Panel provides a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.

This 16 Gauge CRS Steel (Black) Rack Mount Distribution Panel includes Qty. 24 12-fiber Single-mode fiber cassettes for a total of 288 LC (144 Duplex LC) fiber ports in front and 24 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Rack Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.

This rack mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 10.5”H x 17”W x 12”D (19lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes RM-288 Enclosure & (24) 12F MTP-LC Cassettes (24 - 12F MTP Ports)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 288 Fiber MTP-LC Single-mode 6U Rack Mount Panel (SPQ9-LDGVZW-6XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
