288 Fiber MTP-LC Cassette Multimode WM-288 Wall Mount Distribution Panel
Online-Only Discounted Price
288 Fiber MTP-LC Cassette Multimode WM-288 Wall Mount Distribution Panel

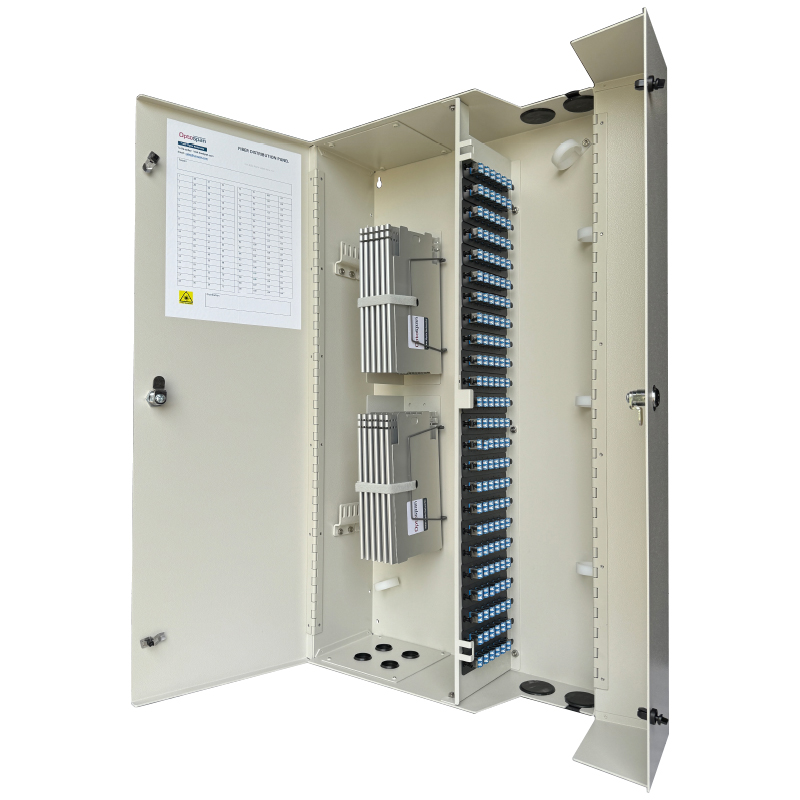

OptoSpan WM-288 Wall Mount Distribution Panel is suitable for a wide range of applications, including data centers, telecommunications rooms, fiber-to-the-home (FTTH) installations, and enterprise networks when rack mounting space is limited.
This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Wall Mount Distribution Panel includes Qty. 24 12-fiber Multimode (OM4) fiber cassettes for a total of 288 LC (144 Duplex LC) fiber ports in front and 24 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Wall Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.
This wall mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.
Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.
Key Features and Benefits:
- Dimensions: 32.3”L x 16.9”W x 6.54”D (30lbs)
- Compatible with OptoSpan High Density MTP-LC Cassettes
- Optional Fiber Splicing Version is Available.
- Includes WM-288 Enclosure & (24) 12F MTP-LC Cassettes (24 - 12F MTP Ports)
- Made in USA - Buy American Act Compliant
To request more information or quantity pricing for the OptoSpan 288 Fiber MTP-LC Multimode WM-288 Wall Mount Panel (WPQ4-LDGVZW-6XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Fiber Count | 288 Fiber |
---|---|
Type | Patch Panel |
Mode | OM4 Multimode |
Height | 1U |
Series | Wall Mount - Select (WM) |
PART | WPQ4-LDGVZW-6XT |
