288 Fiber MTP-LC Cassette Multimode NP-288 Outdoor Waterproof Distribution Panel

288 Fiber MTP-LC Cassette Multimode NP-288 Outdoor Waterproof Distribution Panel

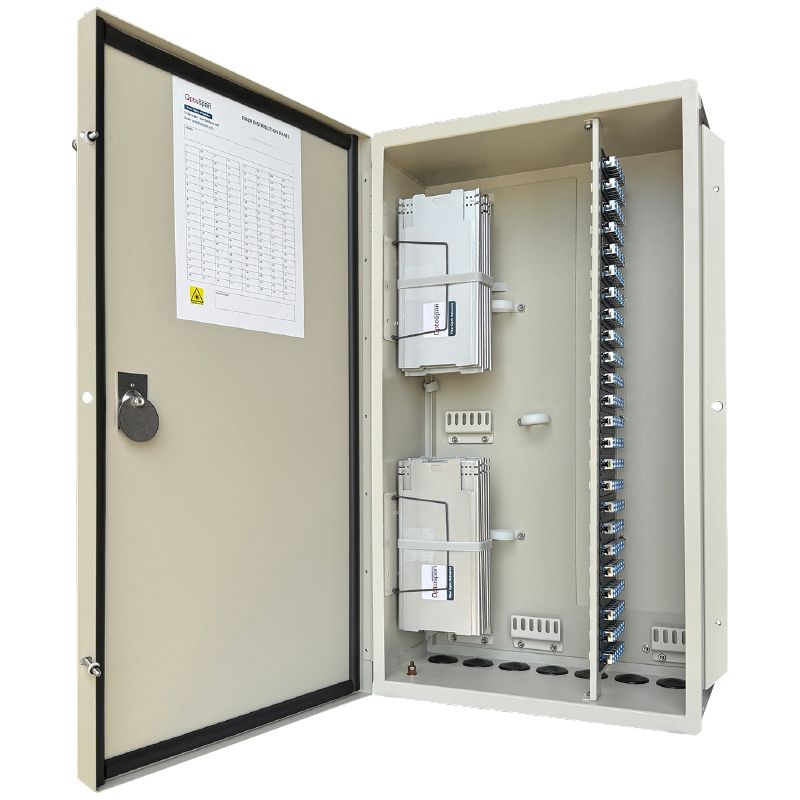

OptoSpan NP-288 Outdoor Waterproof Distribution Panel provides a secure housing for fiber optic connectors and cables and is engineered to withstand exposure to severe environmental conditions, making it a crucial component for a variety of industrial and telecommunications applications.This NEMA 4X Outdoor Waterproof Distribution Panel with Lockable gasketed doors and stainless steel hardware has two sections for incoming and outgoing fiber optic cables.

This 16 Gauge Aluminum Body (Beige Polyester Powder Coat) Outdoor Waterproof Distribution Panel includes Qty. 24 12-fiber Multimode (OM4) fiber cassettes for a total of 288 LC (144 Duplex LC) fiber ports in front and 24 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Outdoor Waterproof Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.

This NEMA-4X outdoor waterproof patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.

Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.

Key Features and Benefits:

• Dimensions: 33”L x 18.92”W x 8.31”D (31lbs)
• Compatible with OptoSpan High Density MTP-LC Cassettes
• Optional Fiber Splicing Version is Available.
• Includes NP-288 Enclosure & (24) 12F MTP-LC Cassettes (24 - 12F MTP Ports)
• Made in USA - Buy American Act Compliant

To request more information or quantity pricing for the OptoSpan 288 Fiber MTP-LC Multimode NP-288 Outdoor (NPQ4-LDGVZW-6XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
