100G MPO Trunk Cable 80ft 96-Fiber Single-mode

96 Fiber 100G MPO Trunk Cable Single-mode 9/125 25 Meter MPO-MPO Connectors

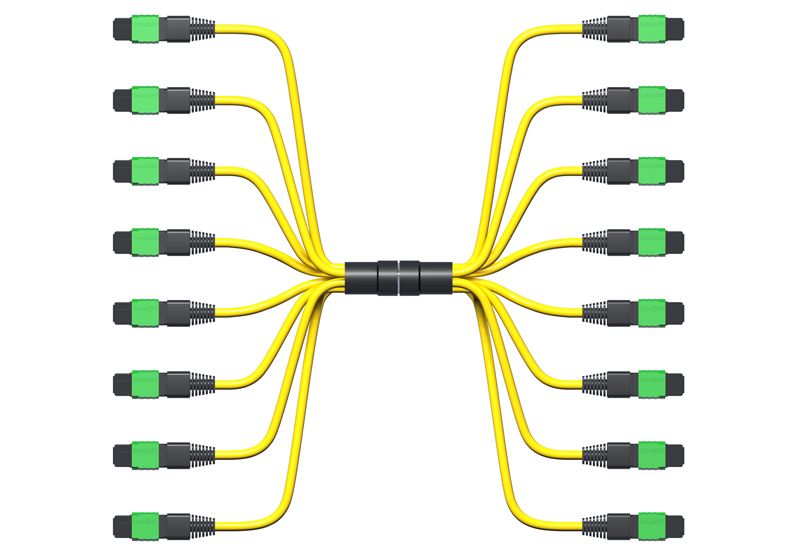

Single-mode (OS2) 96 Fiber (24x4) 100G MPO Trunk Cable. 25 Meter (Approx. 80ft) MPO(Male)-MPO(Male) 9/125 (Yellow) for 100G fiber links Type: For CFP/CXP Trunk connections and other 100G network applications - Polarity: 100G Trunk - 24f Type A, MPO-MPO. Breakout Section Length - 24in. All Single-mode MTP/MPO connectors are APC (Angled Polish) connectors.

Manufactured using OptoSpan Premium OS2 fiber, standard jacket 100G MPO Trunk Cable is designed for light to medium duty indoor applications such as data-center racks and desktop/network connections. Optional MTP Elite (US Conec) low loss connectors available. PDPD-KS296NXR25 is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty. Images are for illustrative purposes only.

OptoSpan PDPD-KS296NXR25 | Key Specifications

• 96 Fiber (24x4)MPO APC/MPO APC 100G MPO Trunk Cable
• MPO(Male)-MPO(Male) Connectors
• 9/125µm Yellow OS2 Cable
• 10 Year Warranty
• 100G MPO Trunk Cable
• Complete Test Report
• Serialized for Quality Tracking
• Complies with TIA-604-10 and IEC 61754-20
• Custom Configurations Available
