Single-mode Plenum 100G MTP Fanout Cable, 24 Strand, 1 Meter

Plenum 100G MTP® Fanout Cable w/FiberShield MTP® to LC 1 Meter / 3ft 24 Strand 40G/100G Single-mode

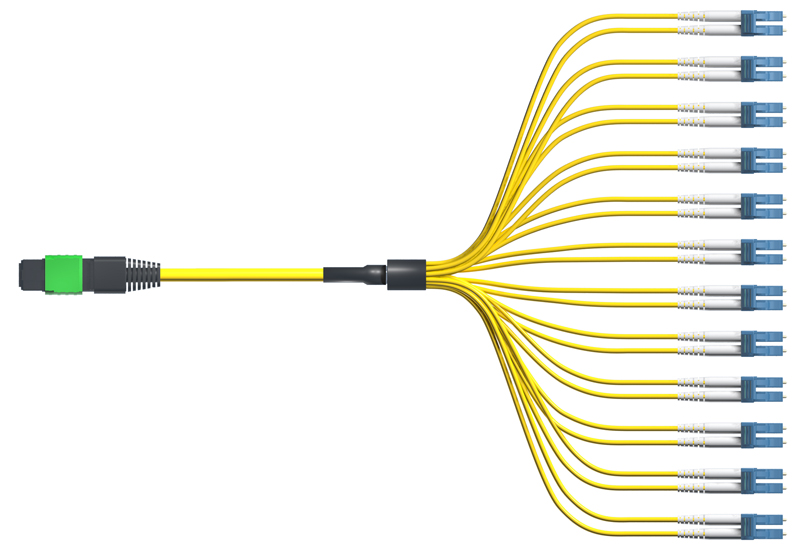

1 Meter (Approx. 3ft) Single-mode (OS2) 9/125 micron 24 Strand (24x1) Plenum 100G MTP Fanout Cable w/FiberShield with MTP(Male)-LC connectors. OS2 (Yellow) for 40G/100G fiber optic networks Type: For 10G/40G Networks, MTP to LC. Breakout Section Length - 24in. All Single-mode MTP/MPO connectors are APC (Angled Polish) connectors.

OptoSpan's 24 fiber MTP cables feature our new and exclusive FiberShield design. The FiberShield structure employs three times (3x) the amount of the PVC jacket and DuPont Kevlar to protect the multitude of delicate optical fibers located inside the cables. This ruggedized cable structure results in a flexible yet robust 4.5mm MTP cable that is 5x stronger than the standard 3.0mm cable.

Genuine MTP Connectors (US Conec). Manufactured using OptoSpan Premium OS2 fiber, standard jacket Plenum 100G MTP Fanout Cable w/FiberShield is designed for light to medium duty indoor applications such as data-center racks and desktop/network connections. Optional MTP Elite (US Conec) low loss connectors available. MDLC-FS224NXP01 is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty. MTP is a registered trademark of US Conec Ltd. Images are for illustrative purposes only.

OptoSpan MDLC-FS224NXP01 | Key Specifications

• FiberShield design - 5x Stronger
• MTP(Male)-LC Connectors
• 9/125µm Yellow OS2 Cable
• 10 Year Warranty
• Plenum 100G MTP Fanout Cable w/FiberShield
• Complete Test Report
• Serialized for Quality Tracking
• Complies with TIA-604-10 and IEC 61754-20
• Custom Configurations Available
