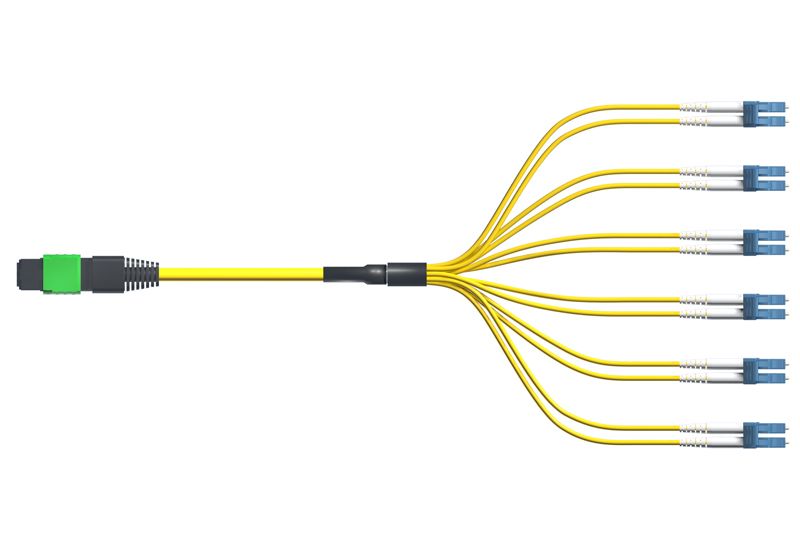

Single-mode Plenum MPO Fanout Cable, 12 Strand, 1 Meter

Plenum MPO Fanout Cable w/FiberShield MPO to LC 1 Meter / 3ft 12 Strand 40G/100G Single-mode

1 Meter (Approx. 3ft) Single-mode (OS2) 9/125 micron 12 Strand Plenum MPO Fanout Cable w/FiberShield with MPO(Male)-LC connectors. OS2 (Yellow) for 40G/100G fiber optic networks Type: For 10G/40G Networks, MPO to LC. Breakout Section Length - 24in. All Single-mode MTP/MPO connectors are APC (Angled Polish) connectors.

OptoSpan's 12 fiber MPO cables feature our new and exclusive FiberShield design. The FiberShield structure employs three times (3x) the amount of the PVC jacket and DuPont Kevlar to protect the multitude of delicate optical fibers located inside the cables. This ruggedized cable structure results in a flexible yet robust 4.5mm MPO cable that is 5x stronger than the standard 3.0mm cable. NOTE: 12F Standard Cables In Stock, 4.5mm w/FiberShield Available Upon Request.

Manufactured using OptoSpan Premium OS2 fiber, standard jacket Plenum MPO Fanout Cable w/FiberShield is designed for light to medium duty indoor applications such as data-center racks and desktop/network connections. Optional MTP Elite (US Conec) low loss connectors available. PBLC-FS212NXP01 is ROHS compliant according to ROHS2011/65/EU and come with a 10 year warranty. Images are for illustrative purposes only.

OptoSpan PBLC-FS212NXP01 | Key Specifications

• FiberShield design - 5x Stronger
• MPO(Male)-LC Connectors
• 9/125µm Yellow OS2 Cable
• 10 Year Warranty
• Plenum MPO Fanout Cable w/FiberShield
• Complete Test Report
• Serialized for Quality Tracking
• Complies with TIA-604-10 and IEC 61754-20
• Custom Configurations Available
