192 Port 2U Fiber Optic Patch Panel Single mode MTP-LC

192 Port 2U Fiber Optic Patch Panel Single mode MTP-LC

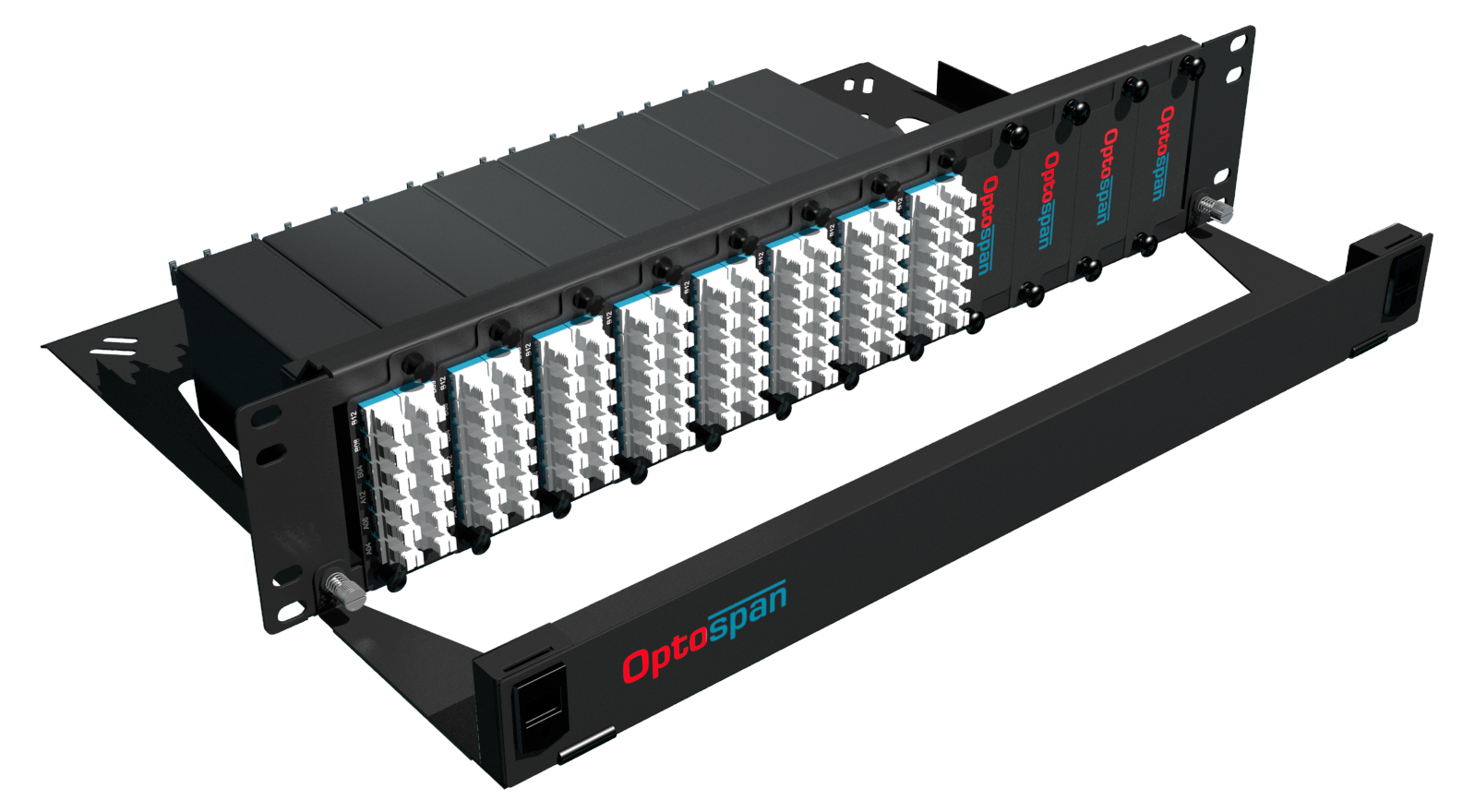

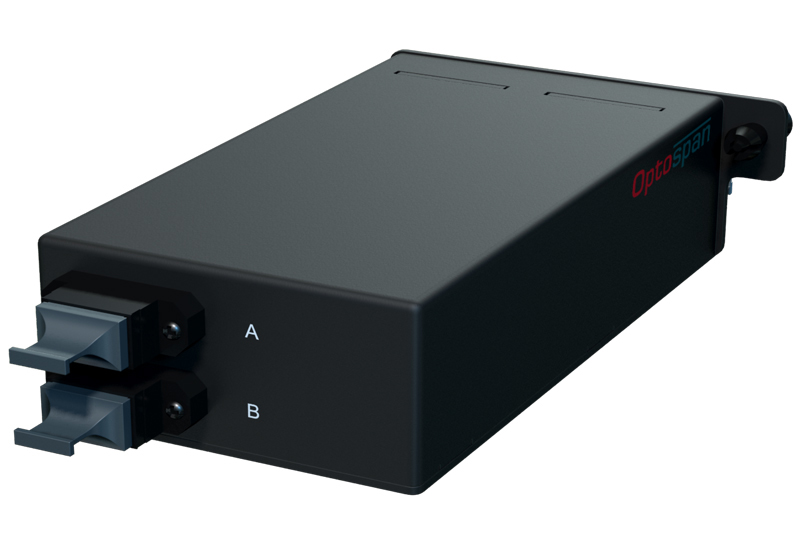

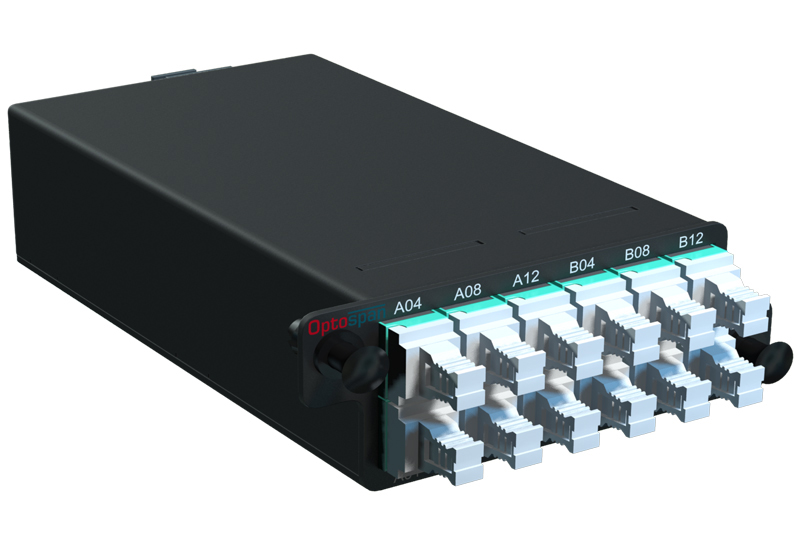

OptoSpan 2U High Density Fiber Optic Patch Panel. This shallow depth (7") compact fiber optic patch panel is loaded with Qty. 8 24 fiber LC-MTP Elite Single-mode Low Loss MTP Cassettes with a total of 192 LC (96 Duplex LC) fiber ports in front and 16 Loss Optimized MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity A and designed for implementations in 40G/100G networks, this fiber optic patch panel is designed for Data Centers, Telecommunication and Enterprise network environment. Expandable to 288 LC fiber adapter ports.

All OptoSpan Matrix Ultra Elite Fiber Optic Patch Panels include:

1. Front Cable Management Tray with Writable Matrix Label.
2. Rear Cable Management Tray.
3. Screws & Cage Nuts for Standard 19" Racks.

Key Features and Benefits:

• 192 LC Fiber Ports (Expandable to 288 LC Fiber Ports in 2 RU)
• 16 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
• Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
• Super Compact Design with Panel depth of less than 7"
• Premium Front & Rear Wire Management Trays Included

To request more information or quantity pricing for the OptoSpan 192 Port High Density Fiber Optic Patch Panel 2U (EPM9-LDEVZN-2AT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
