144 Port High Density Angled MTP Patch Panel LC-MTP 24F Single mode
Online-Only Discounted Price
$3,846.25
PART
UPL9-LQAVWH-1AA

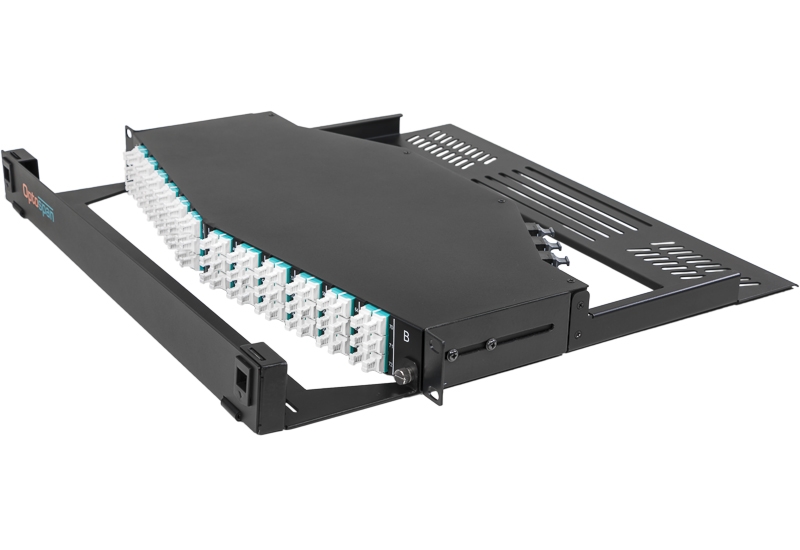

144 Port High Density Angled MTP Patch Panel LC-MTP 24F Single mode
OptoSpan 1U MPO/MTP Patch Panel for quick deployment. This ready-to-install Single-mode Angled MPO/MTP Patch Panel offers 144 LC ports (36 Quad LC) front and 6 Low Loss MTP Elite (24 Fiber Connector) Male/Pinned rear ports. Configured for Polarity A and designed for implementations in 40G/100G networks.
All OptoSpan Matrix Ultra Density Fiber Optic Patch Panels include:
- Front Cable Management Tray with Writable Matrix Label.
- Rear Cable Management Tray.
- Screws & Cage Nuts for Standard 19" Racks.
Key Features and Benefits:
- 144 LC Fiber Ports in 1RU with Angled Front
- 6 MTP Elite (24 Fiber) Connectors in Rear for Core Connection
- Available with 12 Fiber MTP (10/40G) OR 24 Fiber MTP (100G) Connectors
- Compact Design with Panel depth of less than 11"
- Premium Front & Rear Wire Management Trays Included
To request more information or quantity pricing for the OptoSpan 144 Port Angled MTP Patch Panel 1U LC-Low Loss MTP (UPL9-LQAVWH-1AA), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 144 Fiber |
Type | Patch Panel |
Mode | OS2 Single-mode |
Height | 1U |
Series | Rack Mount - Ultra Density (UD) |
PART | UPL9-LQAVWH-1AA |
