1U LGX Fiber Patch Panel 12 Port SC-MTP Multimode
Online-Only Discounted Price
$472.25
PART
HPQ3-SDHVZS-1AF
1U LGX Fiber Patch Panel 12 Port SC-MTP Multimode

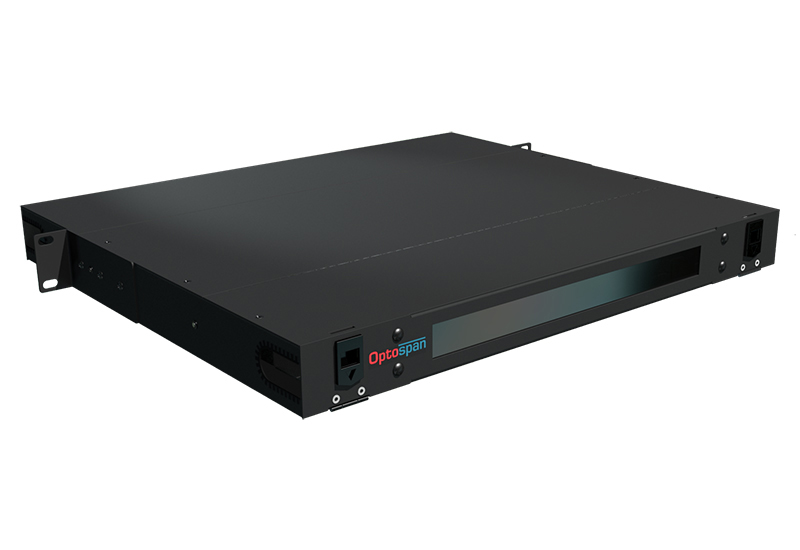

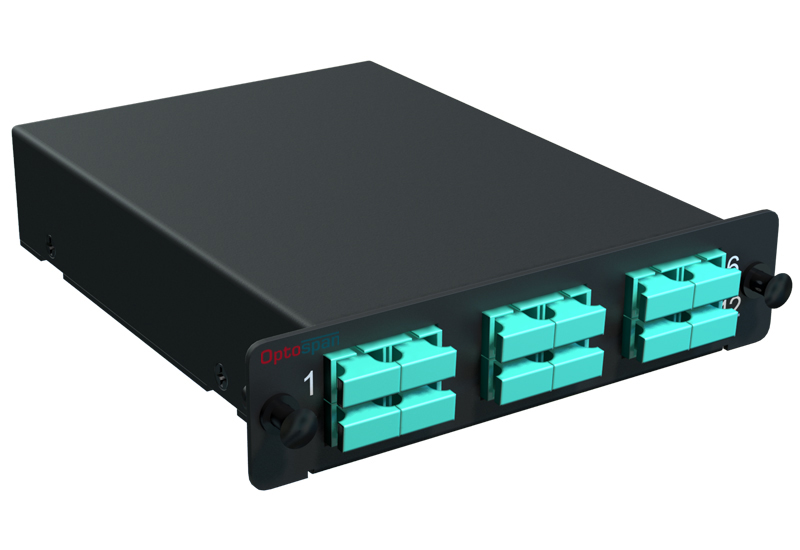

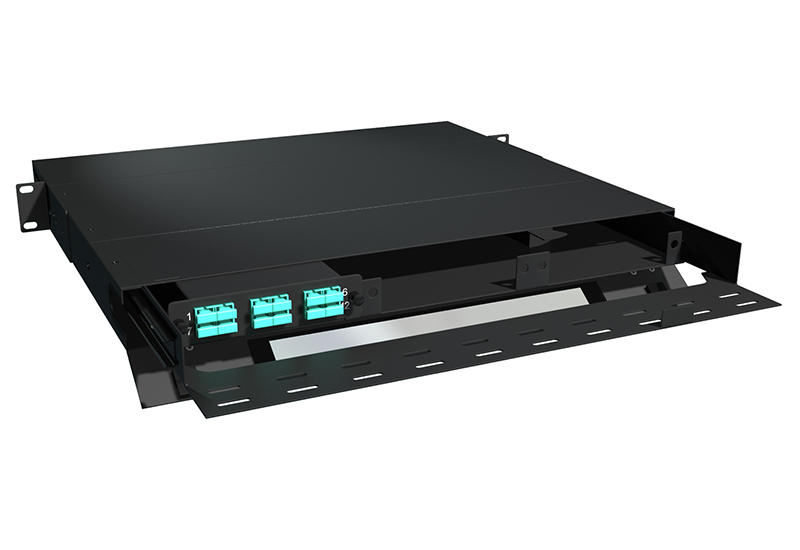

OptoSpan 1U LGX Fiber Patch Panel. This 16 Gauge Steel (Black) fiber patch panel is loaded with Qty. 1 12 fiber Multimode (OM3/OM4) LGX fiber cassettes with a total of 12 SC (6 Duplex SC) fiber ports in front and 1 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. Configured for Polarity Method A and designed for implementations in 10G/40G/100G networks, this fiber patch panel is designed for low insertion loss of .15dB. Maximum expandable to 36 SC ports.
Key Features and Benefits:
- 12 SC Ports in 1U
- 1 MTP Elite (12 Fiber) Connectors in Rear for Core Connection
- Available with up to 288 LC Fiber Ports in 4U

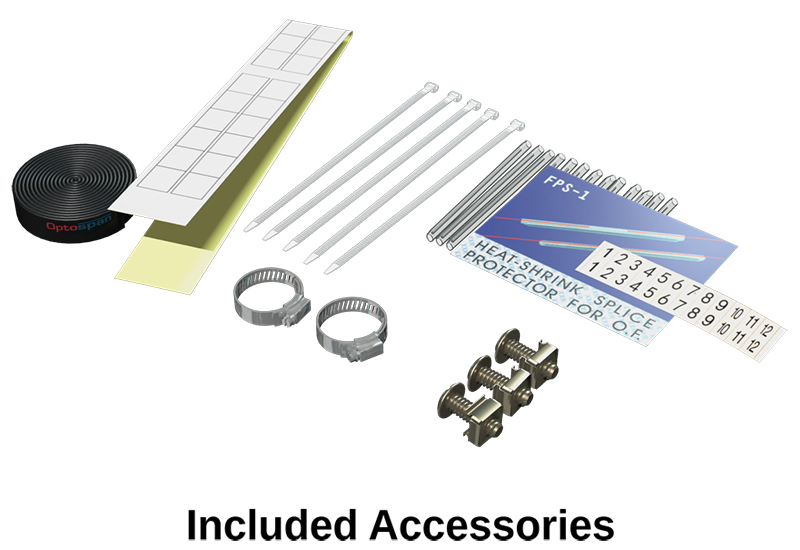

- Splicing Kit Available (Optional)
- LC Pigtails, splice trays and Splice Sleeves Available
To request more information or quantity pricing for the OptoSpan 12 Port Fiber Patch Panel 1U LGX Modular SC-Low (HPQ3-SDHVZS-1AF), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Compatibility | OptoSpan |
---|---|
Fiber Count | 12 Fiber |
Type | Patch Panel |
Mode | OM3/OM4 Multimode |
Height | 1U |
Series | Rack Mount - High Density (HD) |
PART | HPQ3-SDHVZS-1AF |
