12 Fiber MTP-LC Cassette Multimode 1U Rack Mount Distribution Panel
Online-Only Discounted Price
12 Fiber MTP-LC Cassette Multimode 1U Rack Mount Distribution Panel

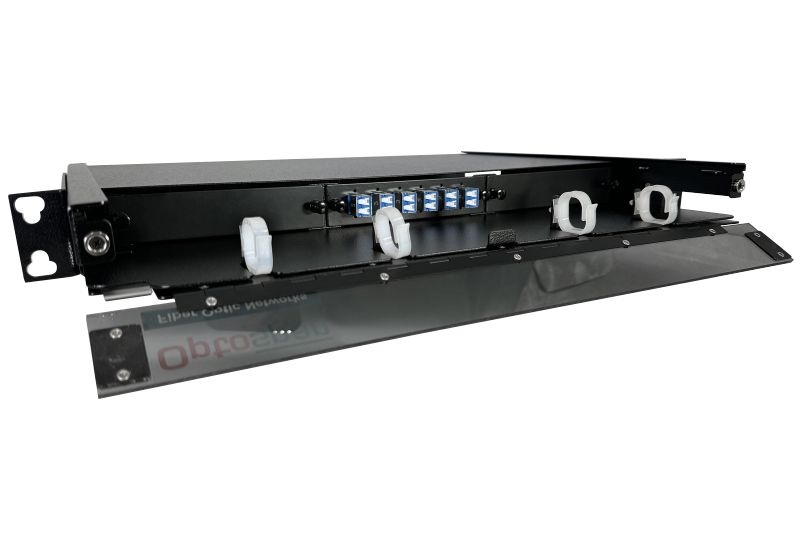

OptoSpan RM-36 1U Rack Mount Distribution Panel provides a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for data center and telecom applications.
This 16 Gauge CRS Steel (Black) Rack Mount Distribution Panel includes Qty. 1 12-fiber Multimode (OM4) fiber cassettes for a total of 12 LC (6 Duplex LC) fiber ports in front and 1 MTP Elite (12 Fiber Connector) Male/Pinned rear ports. This Rack Mount Distribution Panel is factory configured for Polarity Method A and ideal for use in 10G/40G/100G networks.
This rack mount patch panel includes cable management accessories such as cable ties, cable clips, and a grid label sticker to help support and organize cables, reducing the chance of damage or tangling.
Optional accessories include splice trays, pigtails, and multi-fiber (MTP/MPO) cables, which can be pre-configured for this panel.
Key Features and Benefits:
- Dimensions: 1.75”H x 17”W x 15”D (15lbs)
- Compatible with OptoSpan High Density MTP-LC Cassettes
- Optional Fiber Splicing Version is Available.
- Includes RM-36 Enclosure & (1) 12F MTP-LC Cassettes (1 - 12F MTP Ports)
- Made in USA - Buy American Act Compliant
To request more information or quantity pricing for the OptoSpan 12 Fiber MTP-LC Multimode 1U Rack Mount Panel (SPQ4-LDHVZS-1XT), call Toll Free 1-800-720-3860 or submit a request for a customized quote via the form above.
Fiber Count | 12 Fiber |
---|---|
Type | Patch Panel |
Mode | OM4 Multimode |
Height | 1U |
Series | Rack Mount - Select (RM) |
PART | SPQ4-LDHVZS-1XT |
