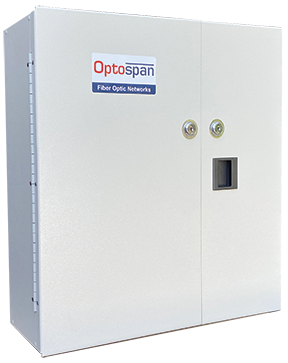

96 Port Wall Mount Fiber Patch Panel WM-96
WM-96
96 Port Wall Mount Enclosure
OptoSpan's WM-96 Wall Mount Termination and Splicing Enclosures provide a convenient, secure and organized housing for fiber optic connections and terminations, as well as a central point for splicing fiber optic cables for indoor or outdoor installations. The WM-96 Wall mount fiber enclosures are frequently employed in a diverse range of applications, including data centers, telecommunication rooms, fiber-to-the-home (FTTH) installations and enterprise networks. These wall mount fiber termination enclosures are crucial to keeping fiber optic networks running smoothly and efficiently because of the roles they play in organizing and safeguarding fiber optic connections.
This WM-96 patch panel has two sections for fiber optic cable entry and exit. It can be pre-configured with up to eight (8) MTP-LC cassettes, up to ninety-six (96) pass-through LC, SC, ST, or FC adapters, and up to ninety-six (96) fiber splicing capacity. This wall-mounted patch panel includes cable management accessories, including cable ties, cable clips, and a grid label sticker, to support and organize cables, thereby reducing the risk of damage or tangling. Splice trays, pigtails, and multi-fiber (MTP/MPO) cables are available as optional accessories and can be pre-configured for use with this panel.
Exclusive Feature
IP5x Rated LC Adapter Panels with Automated Dust Shield
This panel features OptoSpan's exclusive LC Adapter Panels with an IP5x complaint 100% automated dust shield to keep the LC connectors clean and prevent network failures. No Dust Caps Required!
“The leading cause of packet corruption and link downtime in the fiber optic network are the contaminated connectors.”
Key Features and Benefits
| Key Locks | Key locks included for both, the splicing, and the patching compartment |
| Splice and Termination Enclosure | Flexibility of cable termination or splicing in a single panel |
| Modular Design for up to 8 Cassettes, Adapter Panels or Splice Trays | Offers a compact, flexible, and modular solution for a variety of pre-terminated cables |
| Compatible with full line of OptoSpan HD Series Cassettes and Adapter Panels | Choose from the OptoSpan HD Series modules, such as eight (8) MTP-LC cassettes, eight (8) 12F pass-through LC, SC, ST, or FC adapter panels, or six (6) Splice Trays |
| Compatible with OptoSpan Armored and Non-Armored Cables | Simple to integrate this panel with SteelFlex and SteelPatch Armored and Non-Armored cables, enabling reliable networks |
| Compatible with OptoSpan Cable Glands | Offers a method for cable entry and exit as well as stress relief |
| 16 Gauge Aluminum Body with Beige Polyester Powder Coat | Dependable and robust fiber optic network |
| 20 Gauge Aluminum Splice Trays | Rugged splice chip that is pre-installed and ready for fusion, mechanical, or ribbon splicing |
| Double Doors | Double doors offer security and convenience |
| Dedicated Compartments and Trays | Protects delicate fiber splices as well as separate entry and exit cables |
| Spacious Interior Sections | Facilitates field access and installation |
| Rugged Construction andLocking Mechanism | Improve Physical Security |
| Rubber Entrance Ports | Cable entry ports are simple to open and close when installing cable glands for strain relief |
| Included Cable Management Accessories | Improve the identification and upkeep of cables and connectors |
| Turn-key Pre Installed Option | To save time in the field, panels can be delivered pre-installed with MTP-LC cassettes, adapter panels, pigtails, or cable glands |
| Made in USA | Made in the USA from the highest quality components to assure years of dependable use |
Technical Specifications
| Dimensions: | 16.8”L x 17.3”W x 6”D (13lbs) |
| Cable Entry Ports: | (8) 1 1/2” cable entry ports (4 Top, 4 Bottom) |
| Maximum Capacity: | |
| MTP-LC Cassettes: | Qty. 8 (12F) High Density MTP-LC Cassettes |
| Termination (Pass-through): | Qty. 8 (12F) High Density Series Adapter Panels. MPO, LC SC, ST, FC pass through options available.. |
| Splicing: | Qty. 8 (12F) High Density Series LC, SC, ST or FC Adapter Panels with Pigtails and Qty. 6 12F/24F Splice Trays |
Splice Trays
Cable Glands
Wall Mount Panel Comparison
| OptoSpan WM Series Panel Specifications and Max Capacity | Pre-Terminated Fiber Cable Compatibility with WM Series Panels | |||||||||||
| Model | # Slots | Max. Fibers | # HD Series Cassettes | # HD Series Adapter Panels | # Splice Trays | # Entry Ports | Entry Port Size | Cable Glands for Entry Ports | SteelFlex Armored | SteelPatch Armored | MTP/MPO 12F - 144F | Breakout LC/SC/ |
| Incl. | Incl. | Opt. | Opt. | Opt. | Incl. | Incl. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| WM-48 | 4 | 96 | 4 | 4 | 4 | 4 | 1 1/2" | ✓ | ✓ | ✓ | ✓ | ✓ |
| WM-96 | 8 | 144 | 8 | 8 | 6 | 8 | 1 1/2" | ✓ | ✓ | ✓ | ✓ | ✓ |
| WM-144 | 12 | 288 | 12 | 12 | 6 | 8 | 1 1/2" | ✓ | ✓ | ✓ | ✓ | ✓ |
| WM-288 | 24 | 576 | 24 | 24 | 12 | 8 | 1 1/2" | ✓ | ✓ | ✓ | ✓ | ✓ |
Ordering Information
Models:
WM-96-S: Preconfigured for 48F Splicing Option. Splice Trays, Pigtails and Adapter panels sold separately.
WM-96-P: Preconfigured for installation of up to eight OptoSpan High Density Series Adapter Panels. Adapter panels sold separately.
WM-96-D: Preconfigured for installation of up to eight 12F/24F OptoSpan High Density Series MTP-LC Cassette. MTP-LC Cassettes sold separately.
Accessories:
WM-96-SK – Splice kit for OptoSpan WM-48 Series Panels. Includes Qty. 4 - 12F S9 splice trays. Pigtails and Adapter panels sold separately.
WM-96-CG – Cable Gland kit for OptoSpan WM-48 Panels. Includes 4 cable glands for waterproof seal and cable stress relief (compatible with OptoSpan's IP68 series cables).
Quality and Engineering Excellence
By utilizing our proprietary manufacturing process developed over 15 years of experience, we are able to produce higher performance products using the same components, hence lowering the cost to our clients. OptoSpan cables are made in a Class 10,000 (ISO14644-1, ISO7) clean room facility, which eliminates the potential of end face contamination.
Quality Management Systems
- ISO 9001: 2008
- TL9000 (Ver. 5)
Standards Compliance
- Telcordia GR-326 Core
- TIA-604-18: FOCIS 18
- IEC 61754-7-3:2019
- US Conec® owns the registered trademarks PRIZM LightTurn®, MTP® and MTP Elite®.
